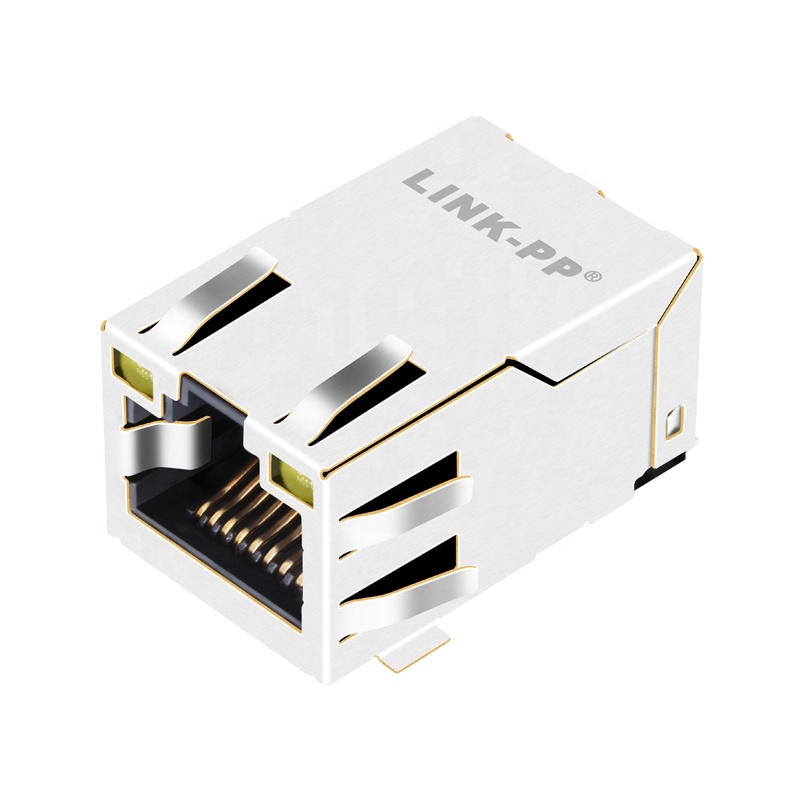

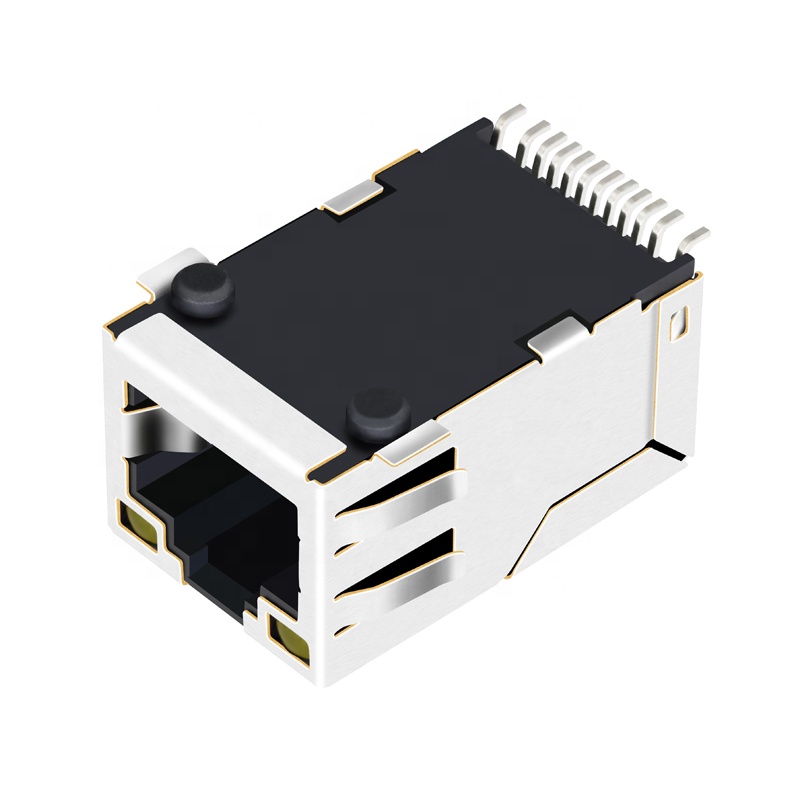

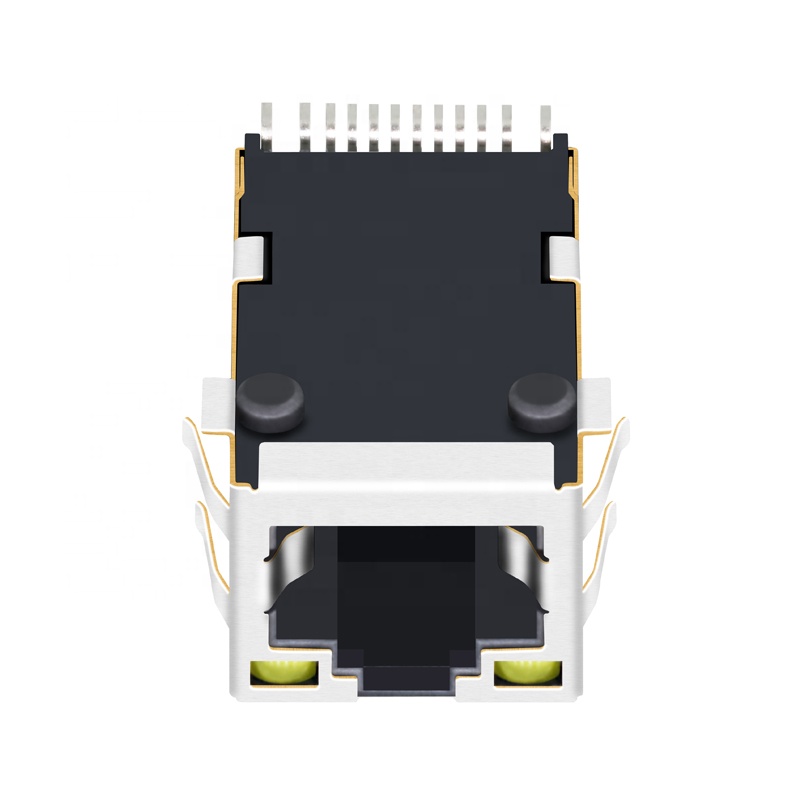

Single Port SMT Modular Magnetics Jack RJ45 Smd Connector
Products Description
| Item |
RJ45 Female Connector |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
⚙ Discover Our Comprehensive Range of Connectors and Transformers
Company Profile
Established in 1997, our organization is a professional designer and manufacturer specializing in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as strong custom capabilities, we operate as a global supplier of high-quality components to OEMs, contract manufacturers, and CEMs, serving over 10,000+ customers in more than 200 countries. By building localized warehousing systems in key areas and continuously increasing safety stock levels, we are dedicated to operating as a leading world-class supplier of Ethernet RJ45 connectors and LAN transformers.
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer focused on magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I obtain samples prior to executing a mass production order?
Yes, we provide free evaluation samples to test and verify quality, with shipping costs covered by the purchaser.
What is your standard delivery timeframe?
In-stock components are ready to ship immediately, while bulk production requirements typically require 15 to 30 days.
What post-purchase service guarantees do you offer?
All products carry a comprehensive one-year warranty period, backed by online technical engineering support available 24 hours a day.
Do you accept customized OEM/ODM projects?
Yes, we have deep customization capabilities. Please contact our engineering department to discuss technical specifications and layout options.
What are your primary competitive advantages?
We offer over 19 years of dedicated manufacturing expertise and function as an audited and trusted supplier partner to global tier-1 technology integrators.
