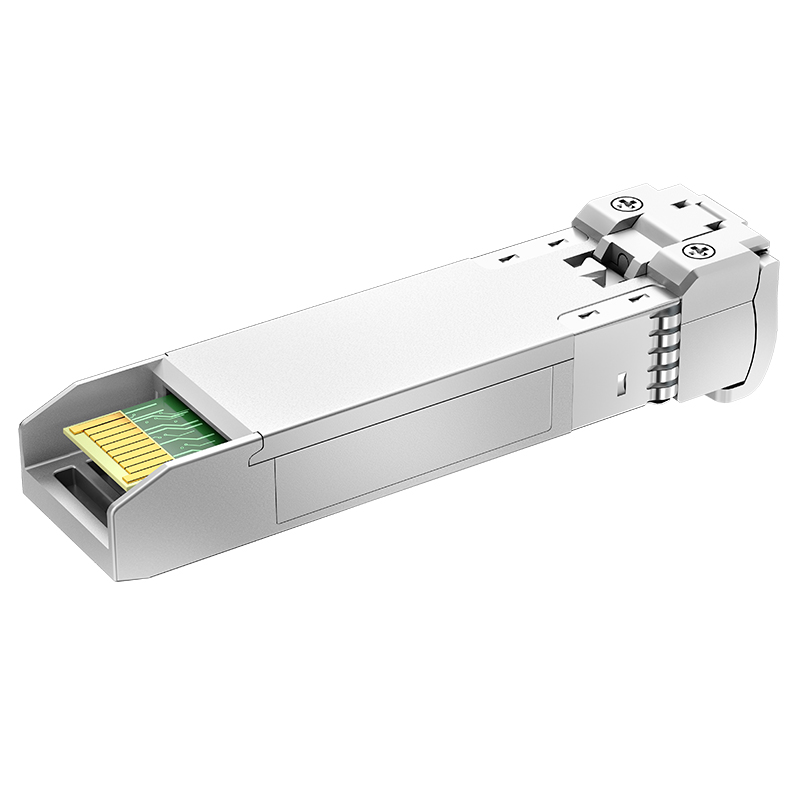

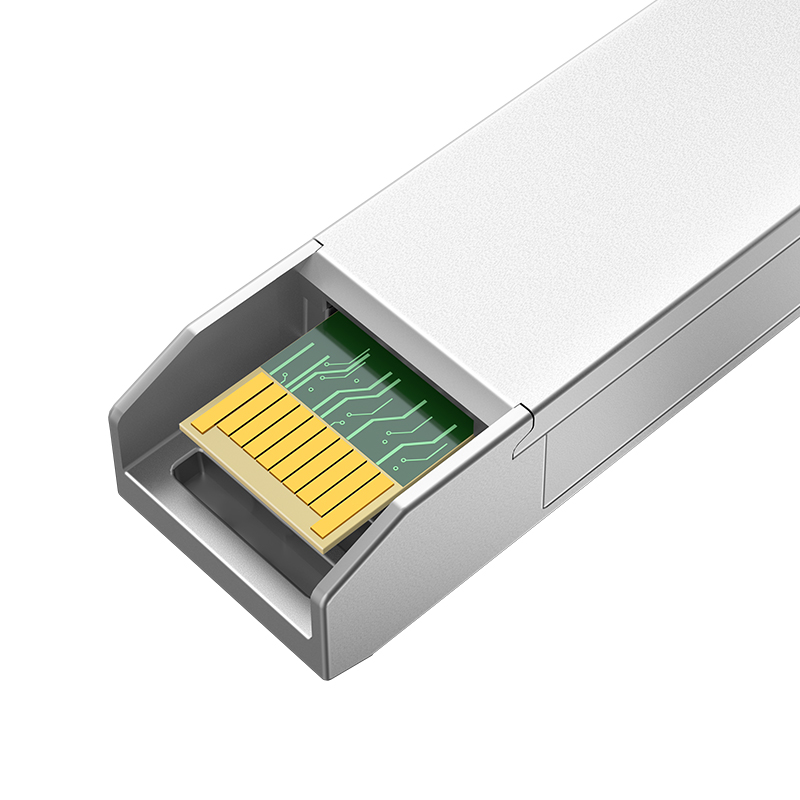

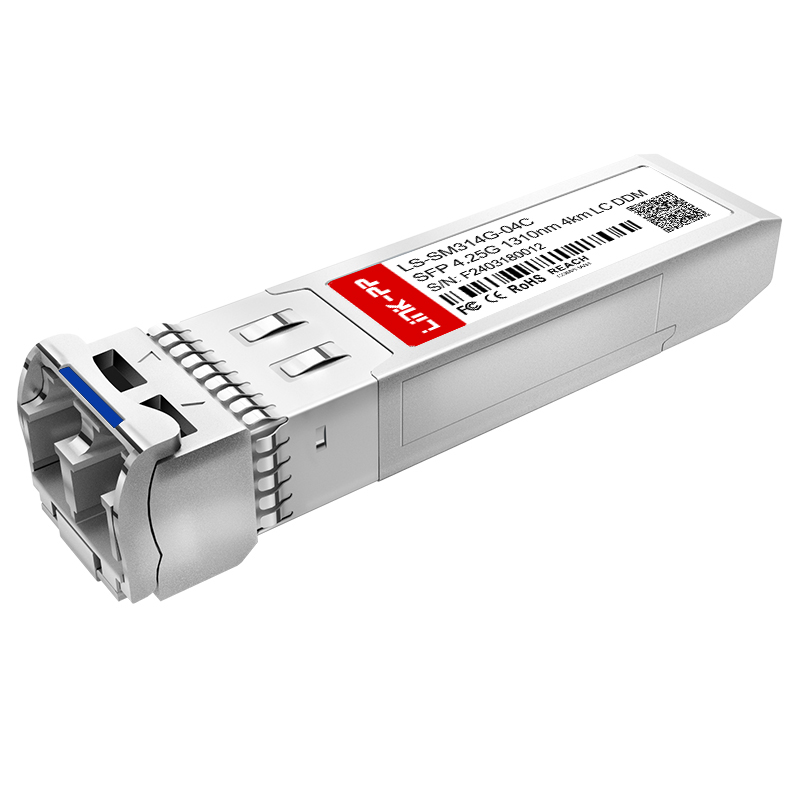

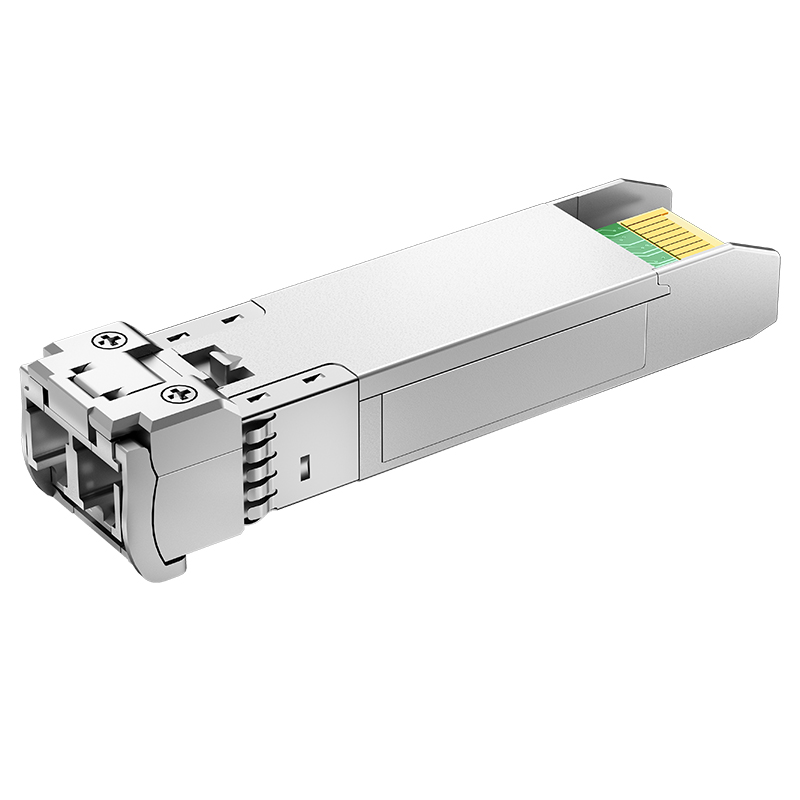

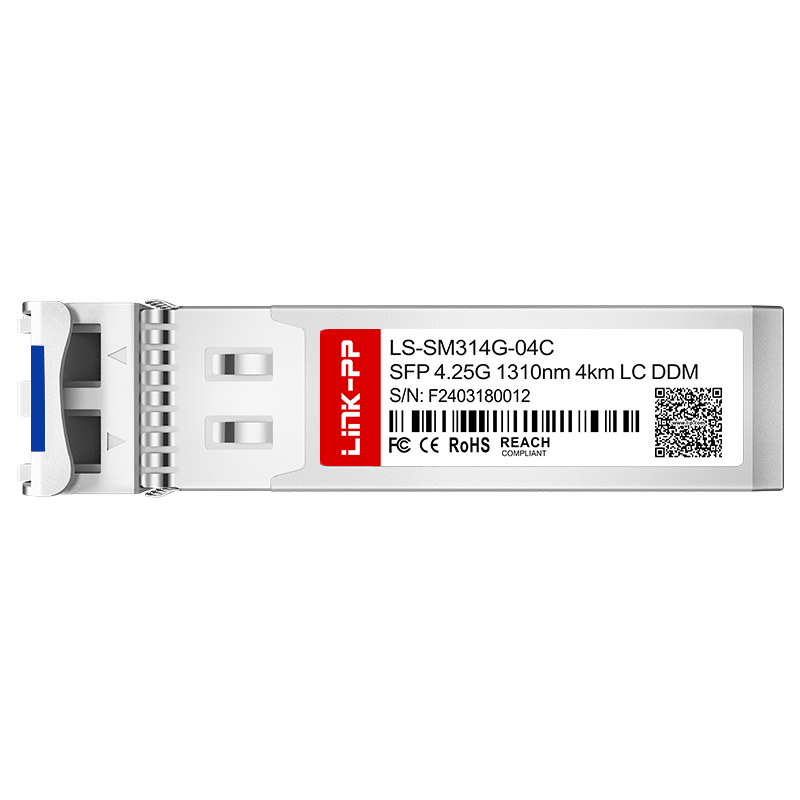

Single Mode SFP 4G 4km 1310nm SMF DDM Duplex LC Optical Transceiver Module

Product Description

Single Mode SFP 4G 4km 1310nm SMF DDM Duplex LC Optical Transceiver Module
Part No. LS-SM314G-04C
Form Factor SFP
Max Data Rate 4.25Gbps
Wavelength 1310nm
Max Cable Distance 4km
Connector Duplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Module Solutions
Support Full Range Of 4.25G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM854G-S1C 4.25Gbps 850nm 150m Multi-mode Yes
LS-MM852G-S3C 4.25Gbps 850nm 300m Multi-mode Yes
LS-MM854G-S5C 4.25Gbps 850nm 500m Multi-mode Yes
LS-SM314G-02C 4.25Gbps 1310nm 2km Single Mode Yes
LS-SM314G-04C 4.25Gbps 1310nm 4km Single Mode Yes
LS-SM314G-10C 4.25Gbps 1310nm 10km Single Mode Yes
LS-SM314G-40C 4.25Gbps 1310nm 40km Single Mode Yes
LS-SM554G-40C 4.25Gbps 1550nm 40km Single Mode Yes
Product Options Matrix
Transceiver Module Range
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Solutions
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems Integration
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
