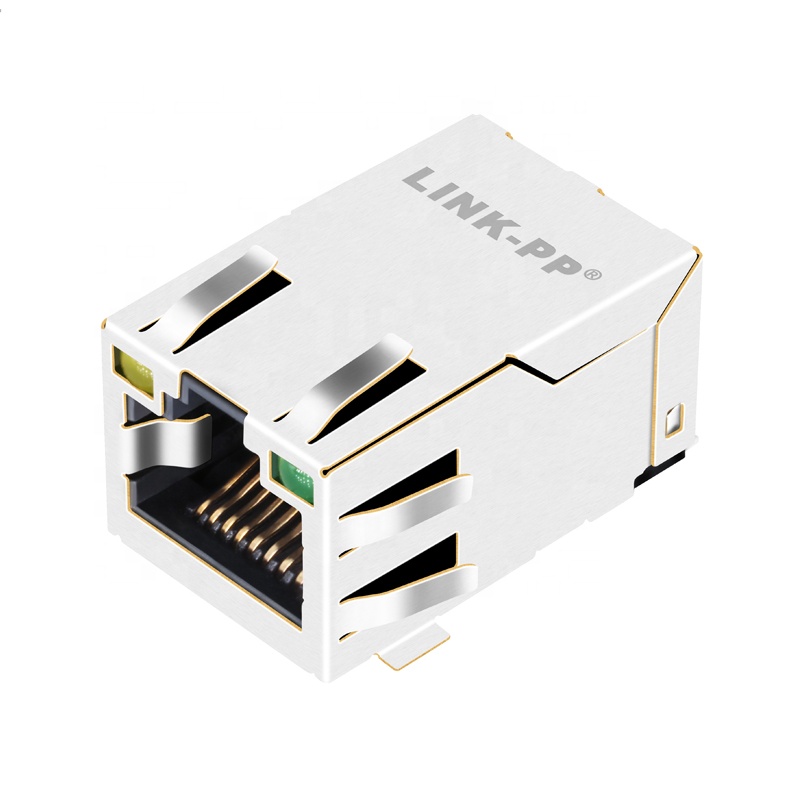

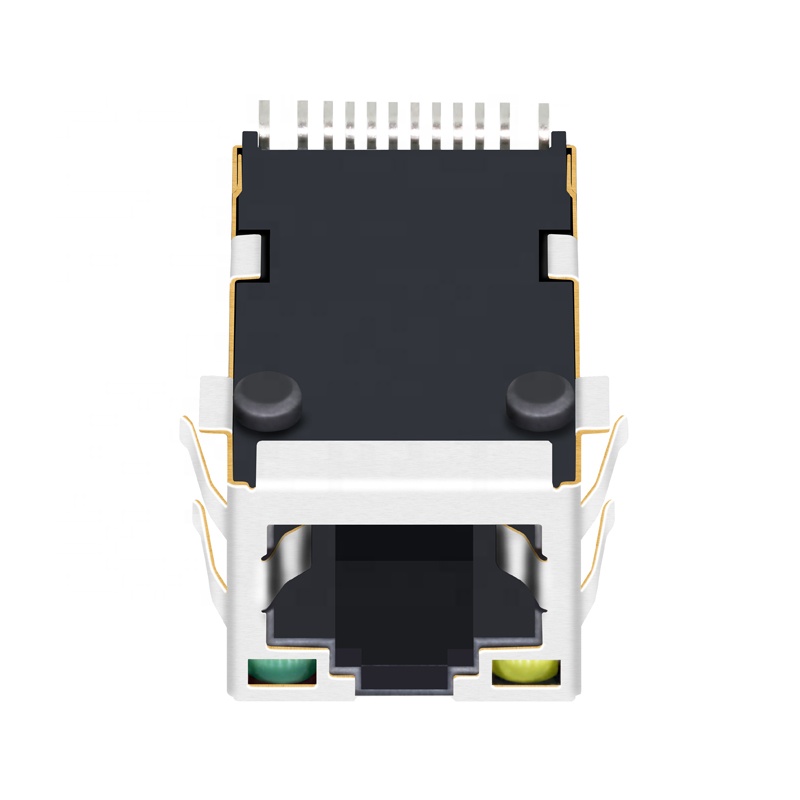

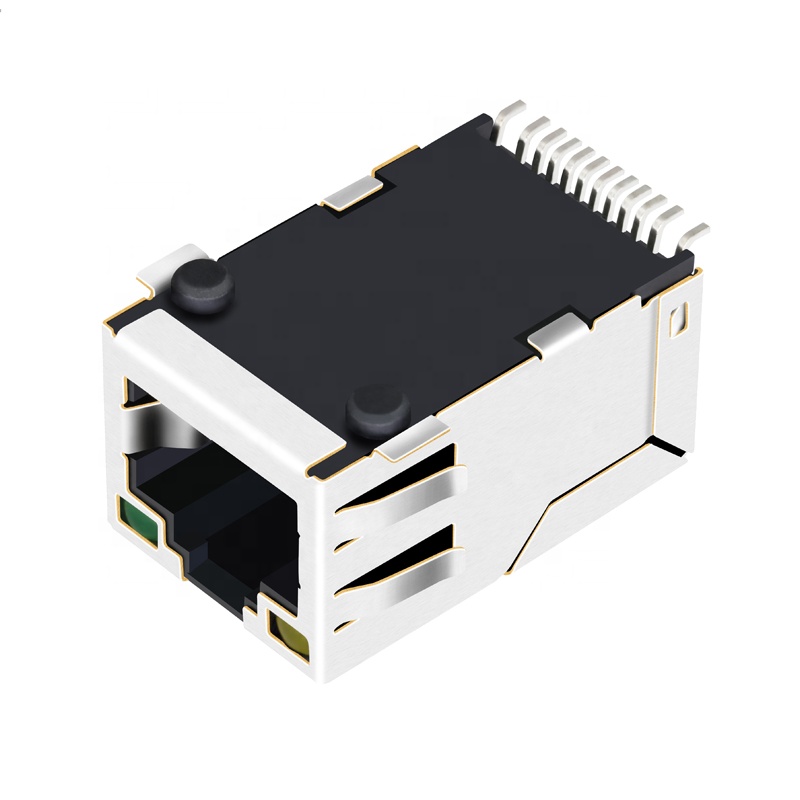

74980111211 Shielded 100 Base-T SMT RJ45 Modular Jack With Magnetics
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJ3007AANL |
| Compatible With |
74980111211 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without/With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
🗲 Related Product Configurations Showcase
Production Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Frequently Asked Questions
1
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3
What is your delivery time?
Products are ready to ship for stock items, and 15-30 days for standard mass production orders.
4
What after-service can you offer?
We provide a one-year guarantee period along with technical support online 24 hours.
5
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your specific requirements.
6
What is your advantage?
We have 19 years of dedicated production experience and have been a trusted partner of Intel and Jabil for many years.
