We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul for 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
| Parameter | Specification |
|---|---|

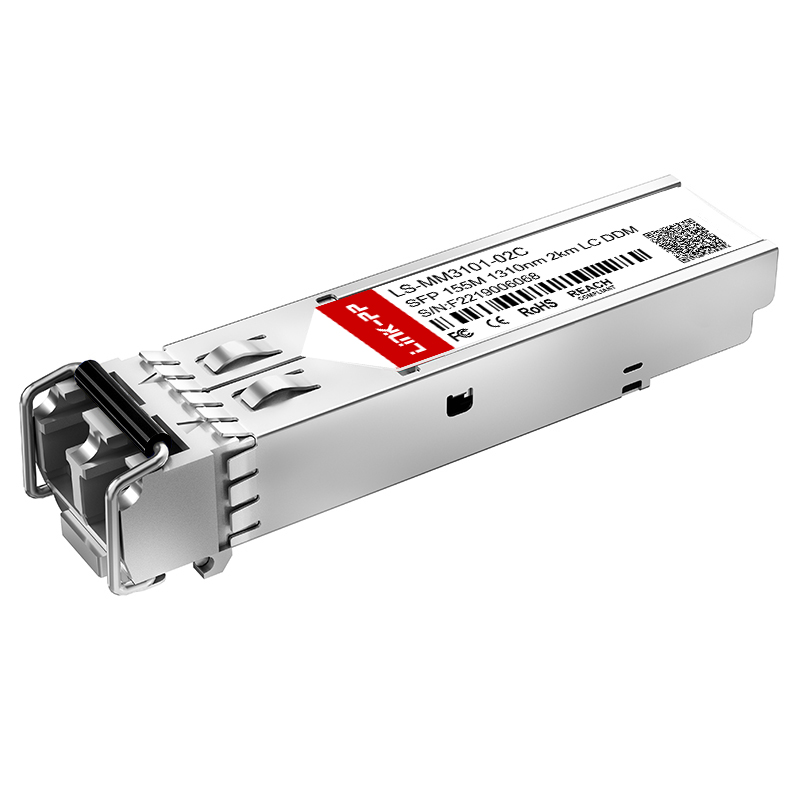

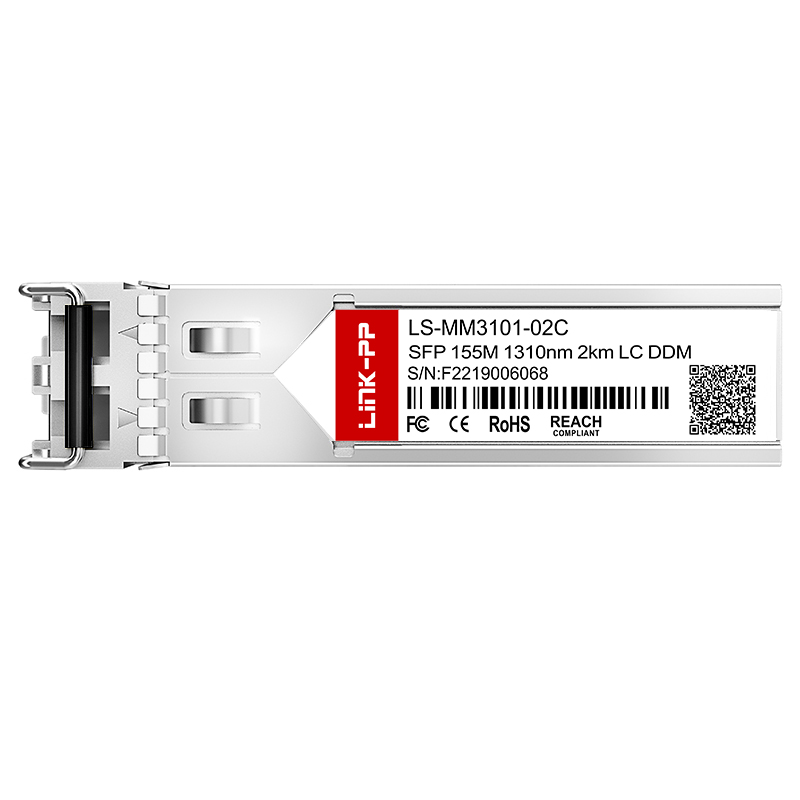

| Part No. | LS-MM3101-02C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -32dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | IEEE802.3U, GR-468, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Model Number | Detailed Description |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-15C | SFP 155M, 1310nm, 15km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-20C | SFP 155M, 1310nm, 20km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM5501-A2C | SFP 155M, 1550nm, 120km, LC, DDM, 0°C-70°C (-40°C-85°C) |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, though the shipping fee would need to be covered.
We are ready to ship immediately for stock items, and have a 15-30 day turnaround for mass production orders.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send an inquiry to us so that we can proceed with a detailed technical discussion.
We have over 19 years of dedicated production experience and have served as trusted supply partners for global industry leaders for many years.
