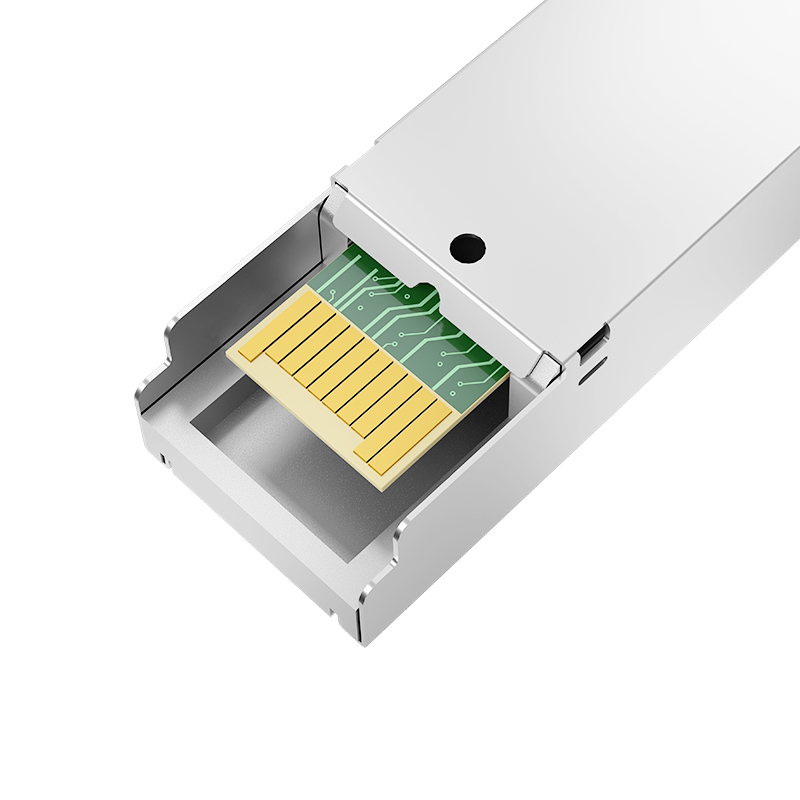

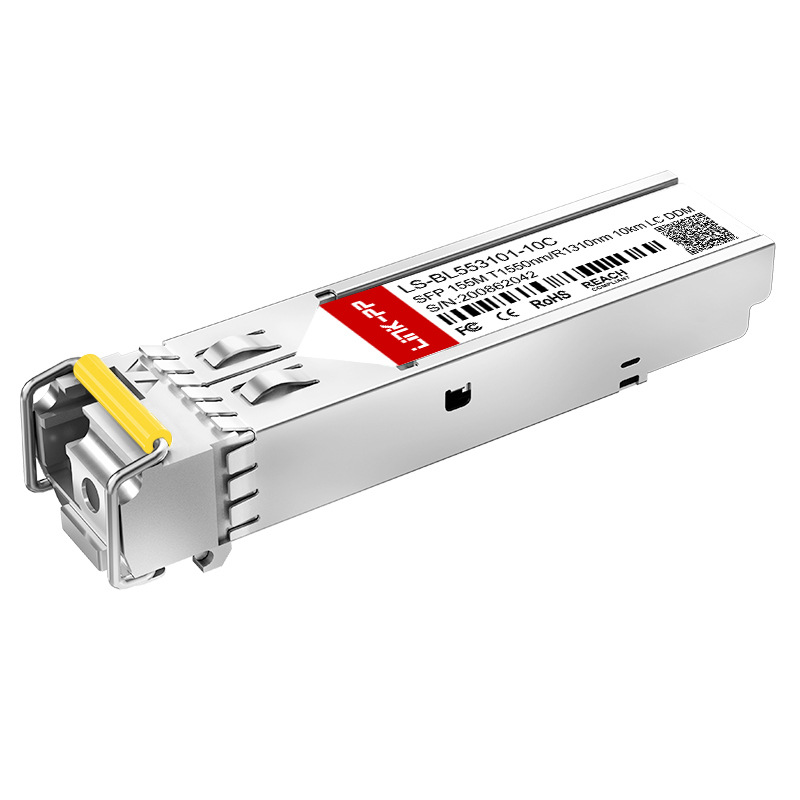

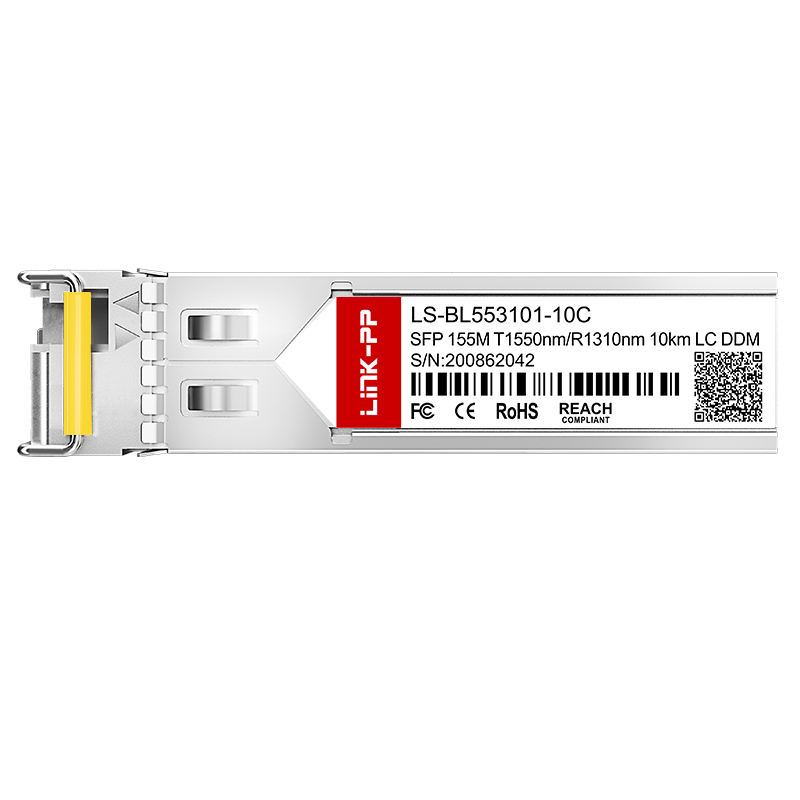

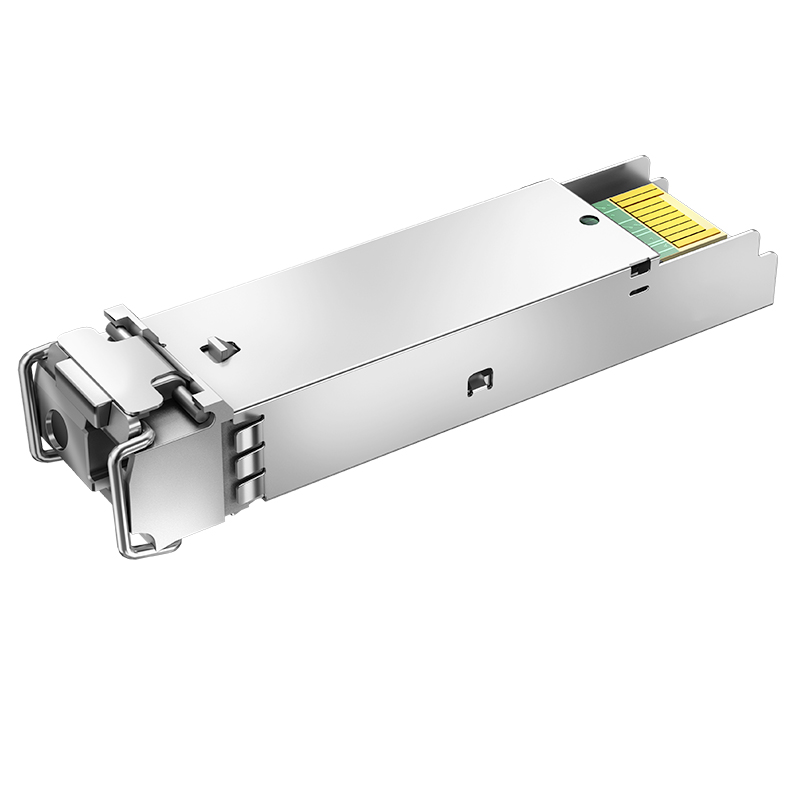

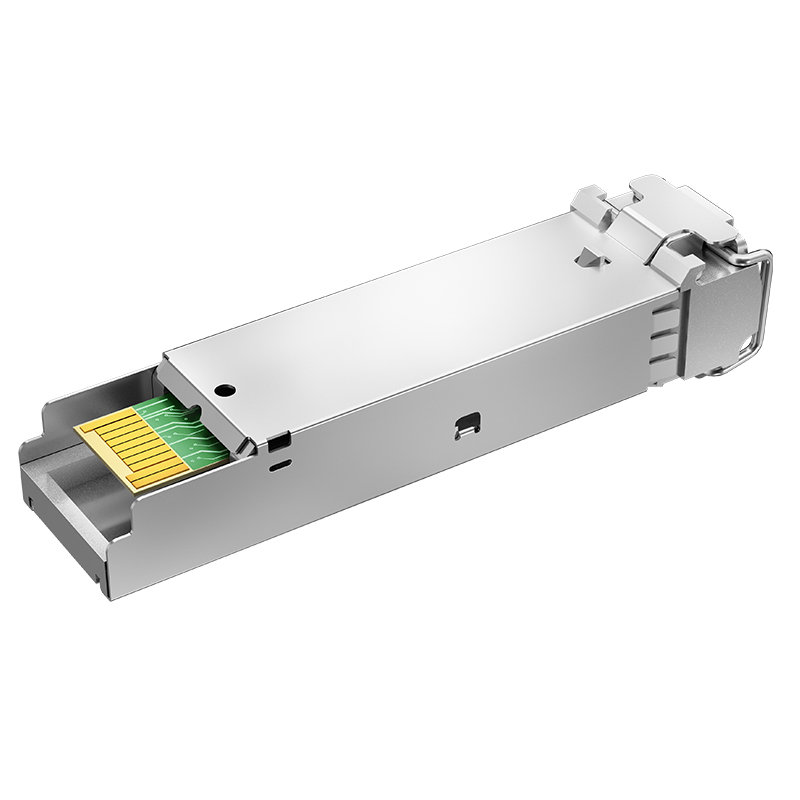

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module
| Part No. |
LS-BL553101-10C |
| Form Factor |
SFP |
| Max Data Rate |
155Mbps |
| Wavelength |
1550nm-TX/1310nm-RX |
| Max Cable Distance |
10km |
| Connector |
Simplex LC |
| Media |
SMF |
| Transmitter Type |
FP |
| Receiver Type |
PIN |
| TX Power |
-14 ~ -8dBm |
| Receiver Sensitivity |
< -30dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number |
Data Rate |
Wavelength |
Distance |
Components |
DDM |
| LS-BL315501-10C |
155Mbps |
1310nm-TX/1550nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL553101-10C |
155Mbps |
1550nm-TX/1310nm-RX |
10km |
FP/PIN |
Yes |
| LS-BL315501-15C |
155Mbps |
1310nm-TX/1550nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL553101-15C |
155Mbps |
1550nm-TX/1310nm-RX |
15km |
FP/PIN |
Yes |
| LS-BL315501-20C |
155Mbps |
1310nm-TX/1550nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL553101-20C |
155Mbps |
1550nm-TX/1310nm-RX |
20km |
FP/PIN |
Yes |
| LS-BL315501-40C |
155Mbps |
1310nm-TX/1550nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL553101-40C |
155Mbps |
1550nm-TX/1310nm-RX |
40km |
FP/PIN |
Yes |
| LS-BL315501-80C |
155Mbps |
1310nm-TX/1550nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL553101-80C |
155Mbps |
1550nm-TX/1310nm-RX |
80km |
FP/PIN |
Yes |
| LS-BL495501-80C |
155Mbps |
1490nm-TX/1550nm-RX |
80km |
DFB/PIN |
Yes |
| LS-BL554901-80C |
155Mbps |
1550nm-TX/1490nm-RX |
80km |
DFB/PIN |
Yes |
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Our enterprise is a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our enterprise was established in 1997, and we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short lead time.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. Our range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell our products worldwide.
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before placing a mass production order?
Yes, we can offer you free samples to test and evaluate the quality, though the shipping fee will need to be covered by the recipient.
What is your typical delivery and lead time?
Stock items are ready to ship immediately, while mass production orders generally take 15 to 30 days.
What kind of after-sales service and support do you provide?
We provide a one-year warranty period and offer 24-hour online technical support.
Do you accept OEM and ODM orders?
Yes, we accept both OEM and ODM orders. Please send your requirements to us so we can discuss the details.
What is your primary manufacturing advantage?
We bring over 19 years of professional production experience and have partnered with major global tech brands for many years.
