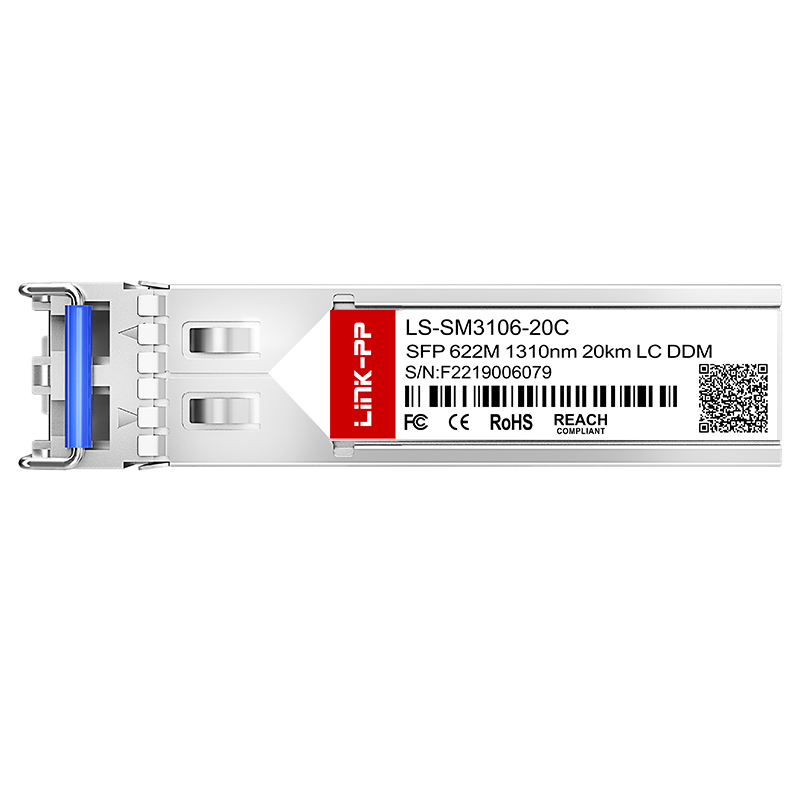

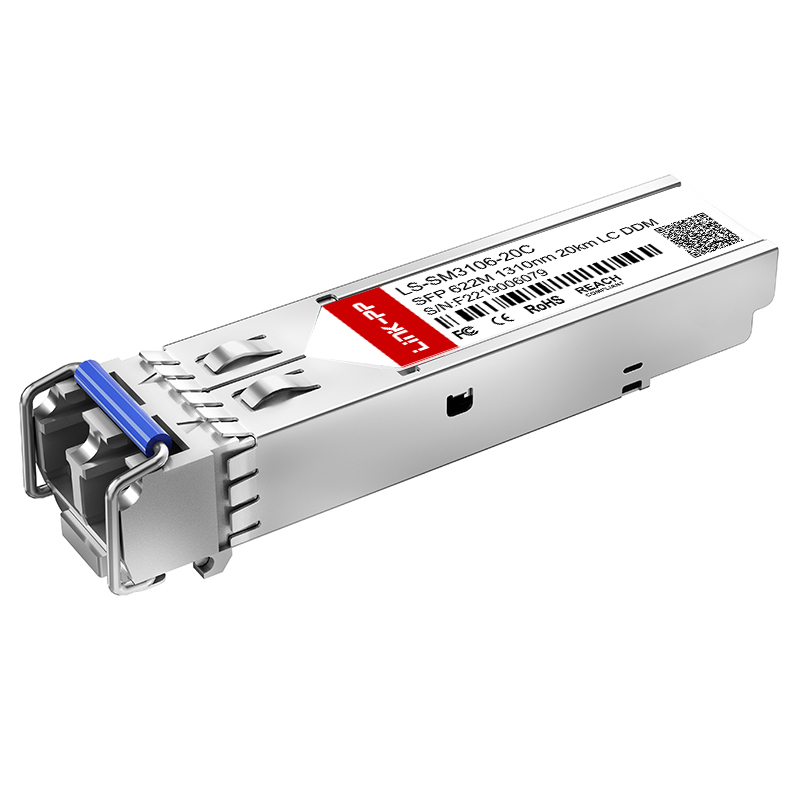

622M Single Mode SFP 1310nm 20km SMF Duplex LC Optical Transceiver Module

Technical Specifications
Part No.	LS-SM3106-20C
Form Factor	SFP
Max Data Rate	622Mbps
Wavelength	1310nm
Max Cable Distance	20km
Connector	Duplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 622M SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM8506-S5C	622Mbps	850nm	500m	Multi-mode	Yes
LS-SM3106-S5C	622Mbps	1310nm	500m	Single Mode	Yes
LS-SM3106-02C	622Mbps	1310nm	2km	Single Mode	Yes
LS-MM3106-02C	622Mbps	1310nm	2km	Multi-mode	Yes
LS-SM3106-20C	622Mbps	1310nm	20km	Single Mode	Yes
LS-SM3106-40C	622Mbps	1310nm	40km	Single Mode	Yes
LS-SM5506-80C	622Mbps	1550nm	80km	Single Mode	Yes
LS-SM5506-A0C	622Mbps	1550nm	100km	Single Mode	Yes
LS-SM5506-A2C	622Mbps	1550nm	120km	Single Mode	Yes

Applications & Industries

Optical Transport Networks

We provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

★ Related Products SFP Cage

Why Choose Us

Manufacturing Capability & Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE, and UL, equipped with advanced manufacturing and testing instruments. Established in 1997, our current workforce and robust monthly production capacity of 3000K allow us to deliver high-quality products within short lead times.

Additionally, we offer a comprehensive range of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. Our portfolio also features high-speed optical interconnect solutions designed for cloud computing and ultra-broadband networks. Using state-of-the-art optoelectronic technologies, we design, manufacture, and distribute products globally.

Frequently Asked Questions (FAQ)

1 Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2 Can I get a sample before mass production?

Yes, we can offer you free samples to test quality. Shipping fees are to be covered by the buyer.

3 What is your delivery time?

Items in stock are ready to ship immediately. For mass production, the lead time typically ranges from 15 to 30 days.

4 What warranty and support do you offer?

We offer a standard warranty period and provide comprehensive online technical support to assist with deployment and configuration.

5 Can you accept OEM/ODM orders?

Yes, we accept both OEM and ODM orders. Please contact our team with your custom requirements so we can discuss the details.

6 What certifications do your products have?

Our manufacturing processes and facilities are certified under ISO9001:2000, and our products fully comply with ROHS, REACH, CE, and UL international standards.
