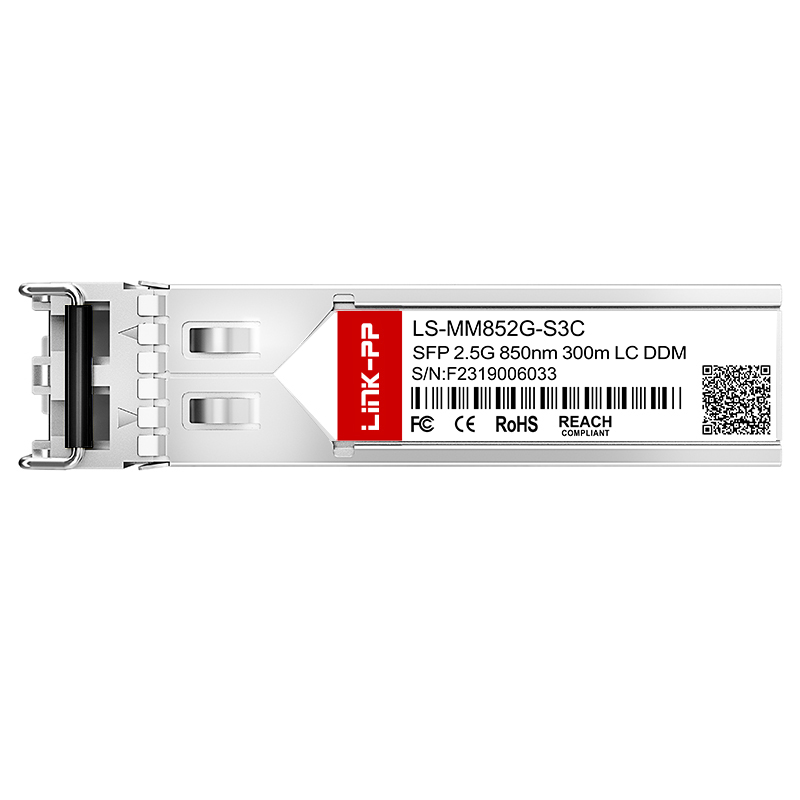

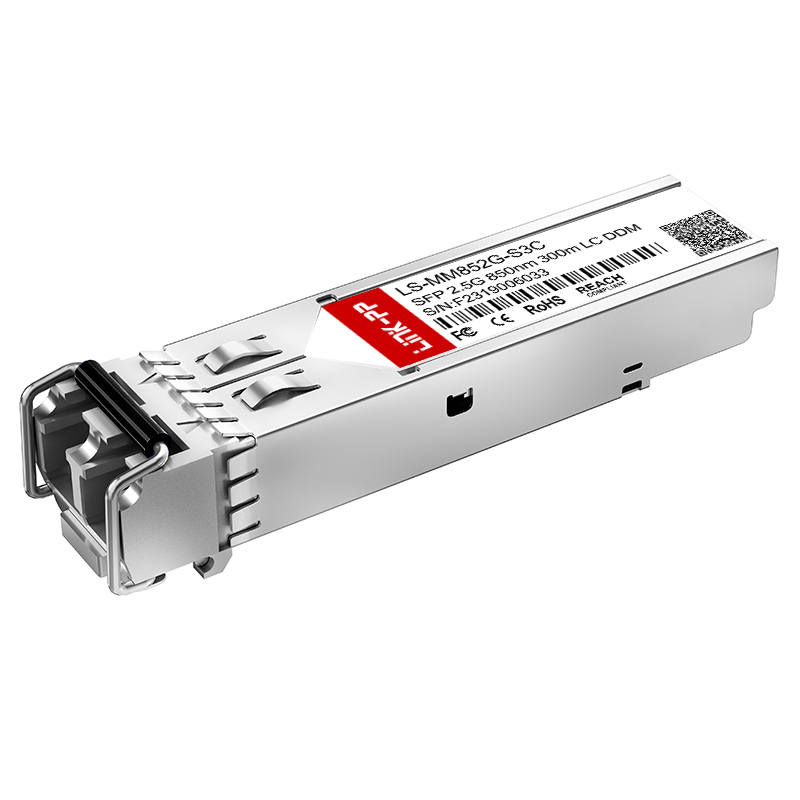

2.5GBASE-SX Multimode 850nm 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

1 / 5

2.5GBASE-SX Multimode 850nm 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

Send Inquiry

Product Description

2.5GBASE-SX Multimode 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

Parameter	Specification
Part No.	LS-MM852G-S3C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	850nm
Max Cable Distance	300m
Connector	Duplex LC
Media	SMF
Transmitter Type	VCSEL
Receiver Type	PIN
TX Power	-10 ~ -3dBm
Receiver Sensitivity	< -18dBm
Receiver Overload	-3dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-15C	2.5Gbps	1310nm	15km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-20C	2.5Gbps	1550nm	20km	Single Mode	Yes
LS-SM312G-40C	2.5Gbps	1310nm	40km	Single Mode	Yes
LS-SM552G-40C	2.5Gbps	1550nm	40km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

Application Environments

Optical Transport Networks

We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you are responsible for paying the shipping fee.

What is your delivery time?

Stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.

What after-sales service do you offer?

We provide a one-year warranty period and offer online technical support 24 hours a day.

Can you accept OEM/ODM orders?

Yes, OEM/ODM orders are accepted. Please send an inquiry to us so we can discuss the details.

What is your advantage?

With extensive production experience and strong partnerships with industry-leading global brands, we ensure high quality, reliability, and robust technical support.
