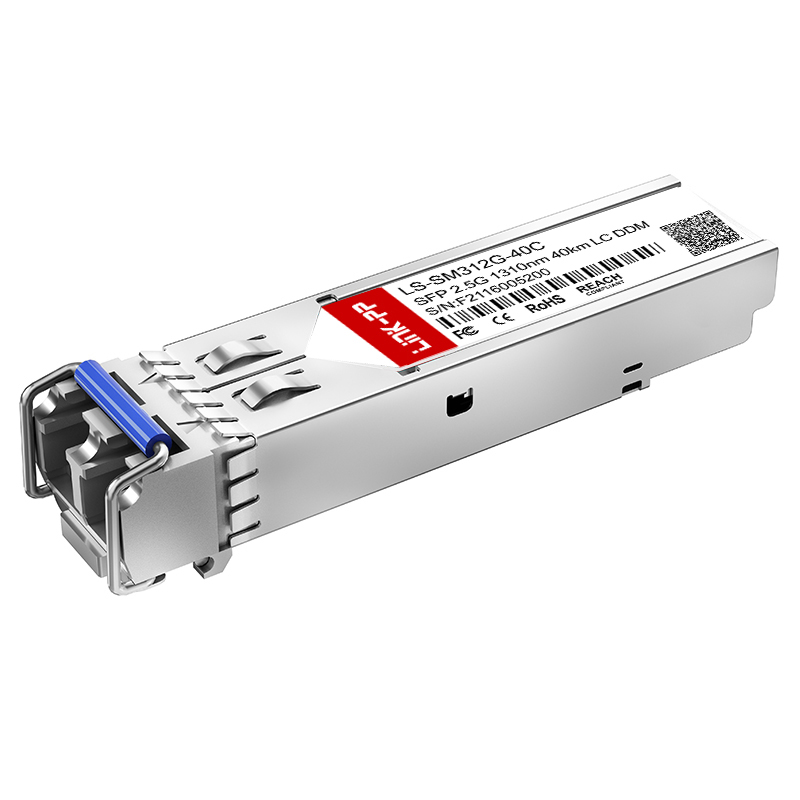

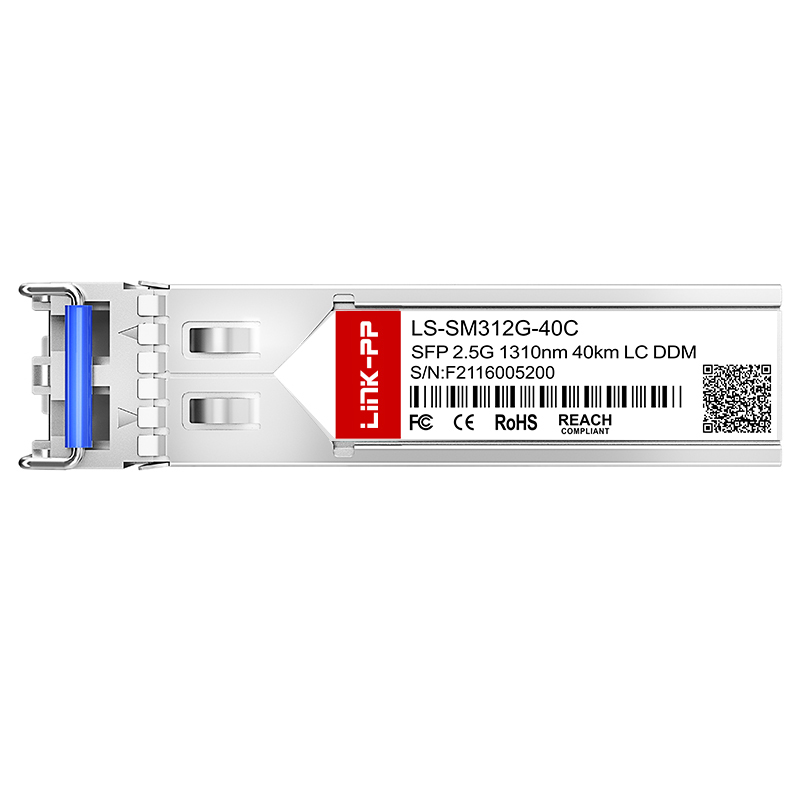

Single Mode SFP 2.5G 1310nm 40km SMF Dual LC Optic Transceiver Module

1 / 5

Single Mode SFP 2.5G 1310nm 40km SMF Dual LC Optic Transceiver Module

Send Inquiry

Product Description

Part No.	LS-SM312G-40C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1310nm
Max Cable Distance	40km
Connector	Duplex LC
Media	SMF
Transmitter Type	DFB
Receiver Type	PIN
TX Power	-2 ~ 3dBm
Receiver Sensitivity	< -27dBm
Receiver Overload	-3dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-15C	2.5Gbps	1310nm	15km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-20C	2.5Gbps	1550nm	20km	Single Mode	Yes
LS-SM312G-40C	2.5Gbps	1310nm	40km	Single Mode	Yes
LS-SM552G-40C	2.5Gbps	1550nm	40km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

Application Scenarios

Optical Transport Networks

We provide end-to-end DWDM solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products

Why Choose Us

Company Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our enterprise was established in 1997, and we currently have about 2,000 employees. With an abundant production capacity of 3000K units per month, we deliver products within short turnaround times.

In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, but shipping costs will be covered by the buyer.

What is your delivery time?

For in-stock items, they are ready to ship immediately. For mass production, the delivery time ranges between 15 to 30 days.

What after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, OEM and ODM orders are accepted. Please send your inquiries to us to discuss detailed specifications.

What are your manufacturing advantages?

We possess over 19 years of professional manufacturing experience and have partnered with leading global technology corporations for many years to deliver high-standard optical components.
