Single Mode SFP 2.5G 1310nm 20km SMF Duplex LC Optical Transceiver Module

Product Description

Single Mode SFP 2.5G 1310nm 20km SMF Duplex LC Optical Transceiver Module
Vendor Part No. LS-SM312G-20C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 20km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
TX Power -5 ~ 0dBm
Receiver Sensitivity < -18dBm
Receiver Overload -3dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes

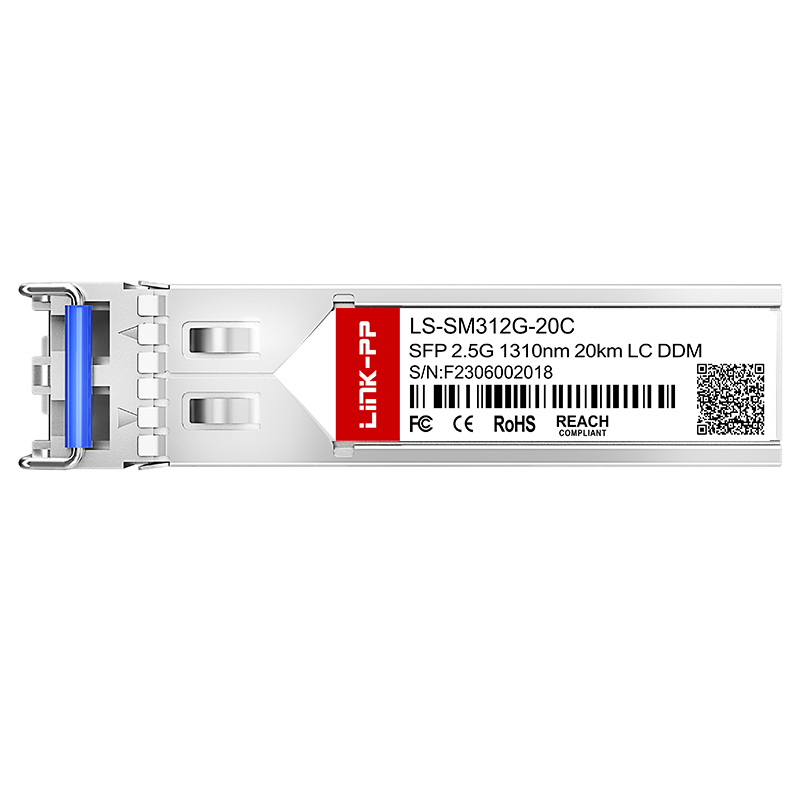

Product Display 1

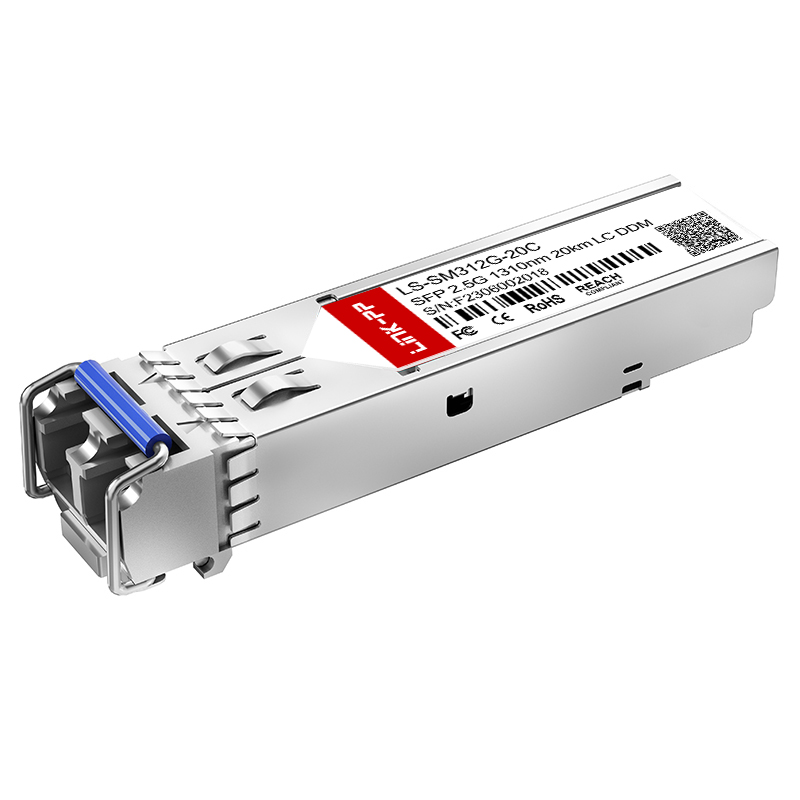

Product Display 2
Industry Applications & Solutions
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
✔ Related Products SFP Cage ✔
SFP Cage
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Frequently Asked Questions
Q: What is the product range offered?
We provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks.
Q: Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but the shipping fee should be covered.
Q: What is your delivery time?
Products are ready to ship for stock items, and it takes 15-30 days for mass production.
Q: What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q: Can you accept OEM/ODM order?
Yes, please contact us with your details so we can have a detailed discussion about your requirements.
Q: What is your advantage in the market?
We have over 19 years of manufacturing and production experience, and have established long-term partnerships with leading global enterprises.
