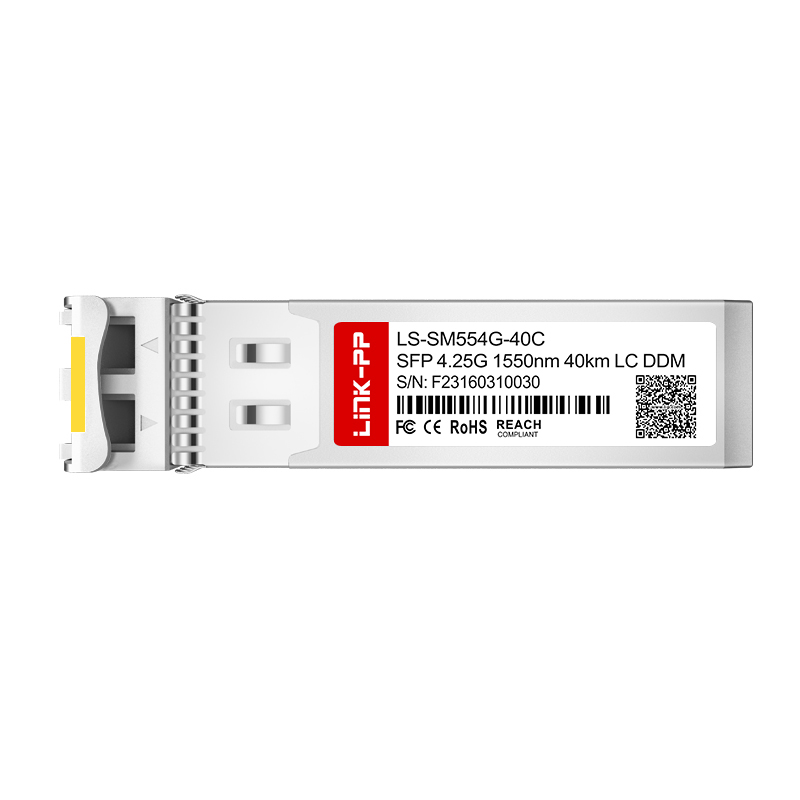

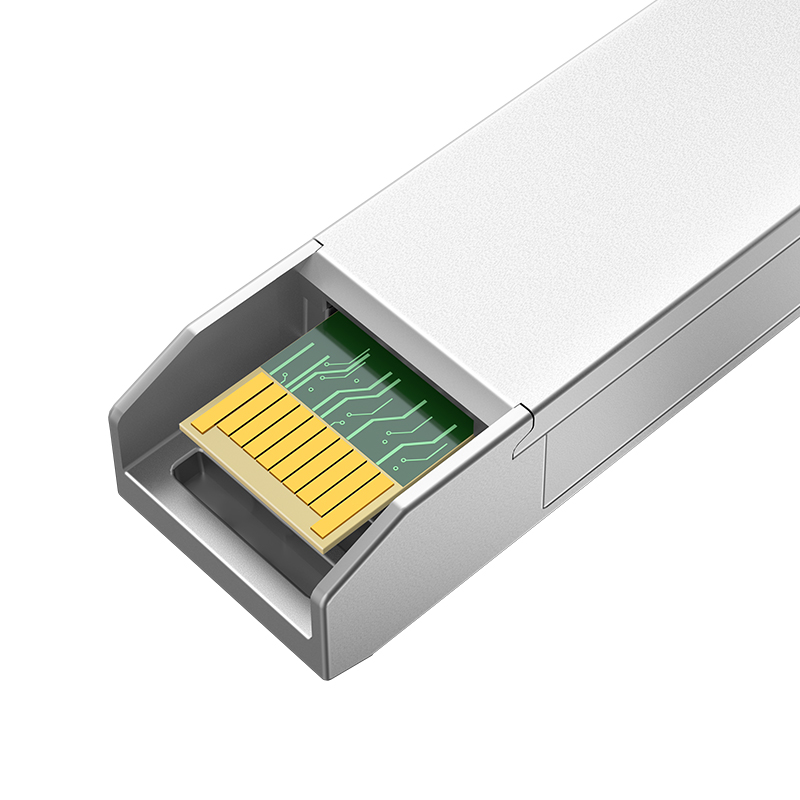

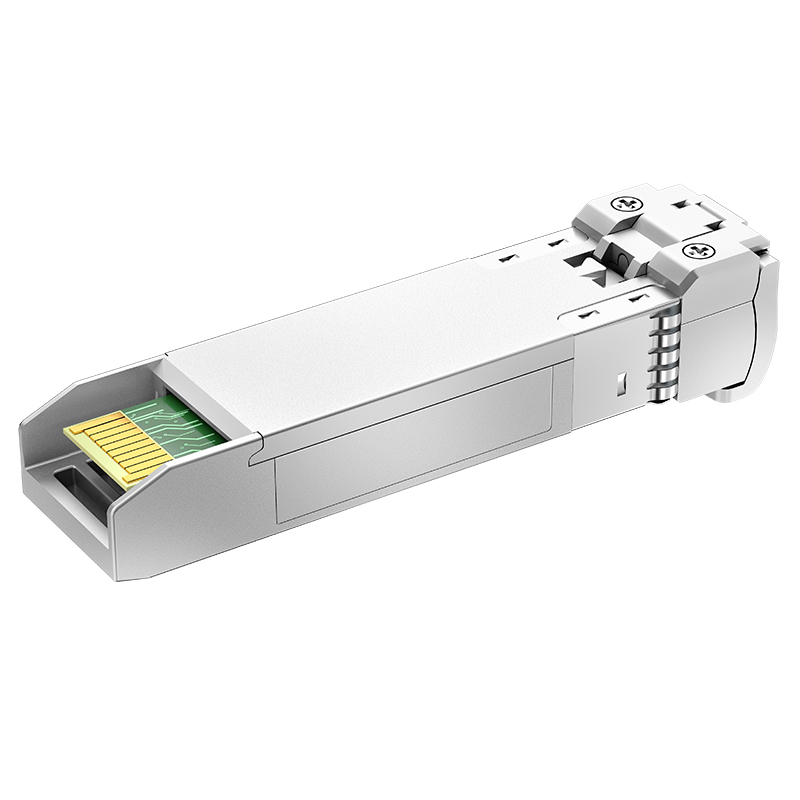

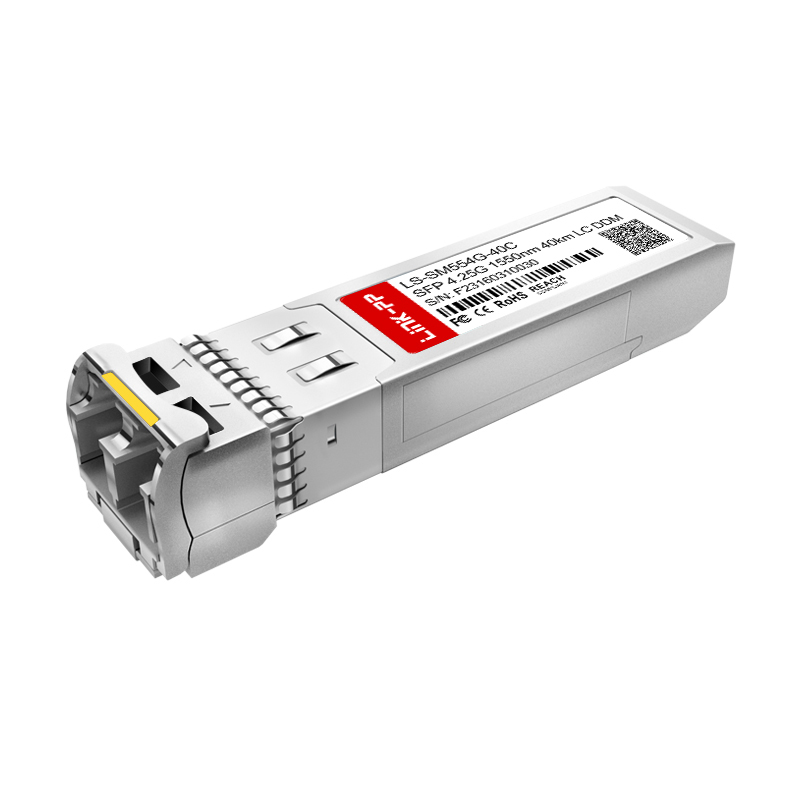

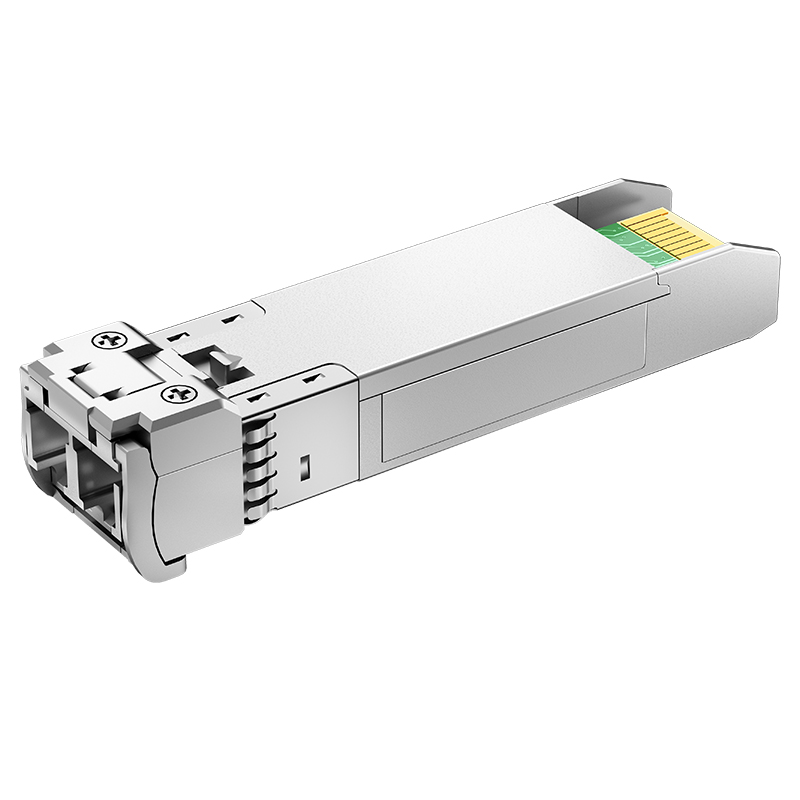

Single Mode 1550nm SFP 4G 40km SMF Duplex LC Optical Transceiver Module

1 / 5

Single Mode 1550nm SFP 4G 40km SMF Duplex LC Optical Transceiver Module

Send Inquiry

Product Description

Single Mode 1550nm SFP 4G 40km SMF Duplex LC Optical Transceive Module

📋 Specifications

Form Factor	SFP
Max Data Rate	4.25Gbps
Wavelength	1550nm
Max Cable Distance	40km
Connector	Duplex LC
Media	SMF
Transmitter Type	DFB
Receiver Type	PIN
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

💡 View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

⚡ Support Full Range Of 4.25G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM854G-S1C	4.25Gbps	850nm	150m	Multi-mode	Yes
LS-MM852G-S3C	4.25Gbps	850nm	300m	Multi-mode	Yes
LS-MM854G-S5C	4.25Gbps	850nm	500m	Multi-mode	Yes
LS-SM314G-02C	4.25Gbps	1310nm	2km	Single Mode	Yes
LS-SM314G-04C	4.25Gbps	1310nm	4km	Single Mode	Yes
LS-SM314G-10C	4.25Gbps	1310nm	10km	Single Mode	Yes
LS-SM314G-40C	4.25Gbps	1310nm	40km	Single Mode	Yes
LS-SM554G-40C	4.25Gbps	1550nm	40km	Single Mode	Yes

🌐 Application Scenarios

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

🔍 Related Products SFP Cage

🏆 Why Choose Us

❓ FAQ

📌 1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

📌 2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should cover the shipping fee.

📌 3. What is your delivery time?

Products are ready to ship for stock items, and take 15-30 days for mass production.

📌 4. What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

📌 5. Can you accept OEM/ODM orders?

Yes, please send your inquiries to us so that we can have a detailed discussion on custom solutions.

📌 6. What is your manufacturing advantage?

We have 19 years of dedicated production experience, providing high-quality manufacturing and industry-leading performance.
