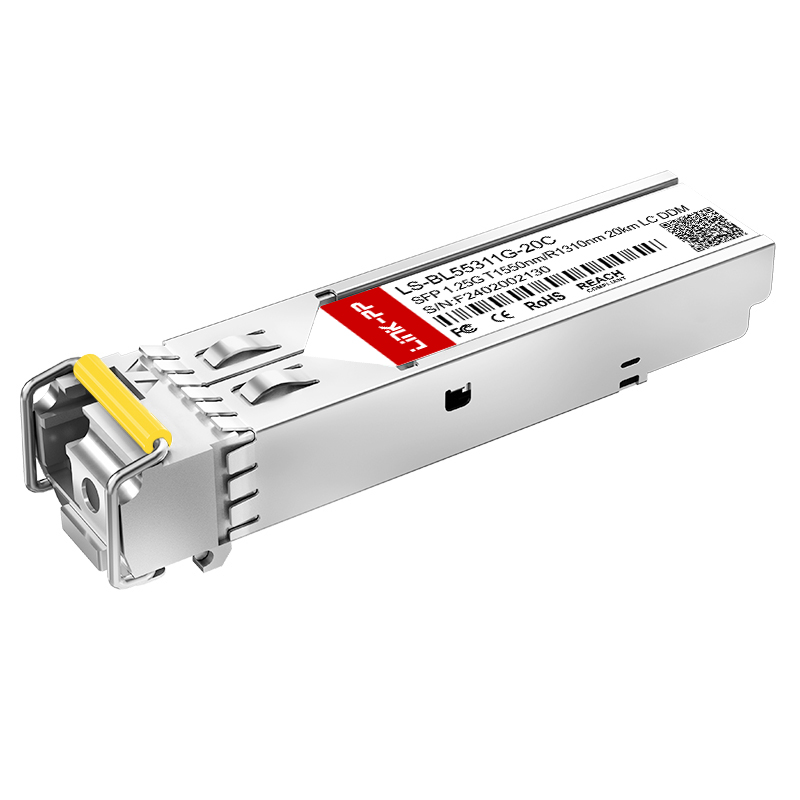

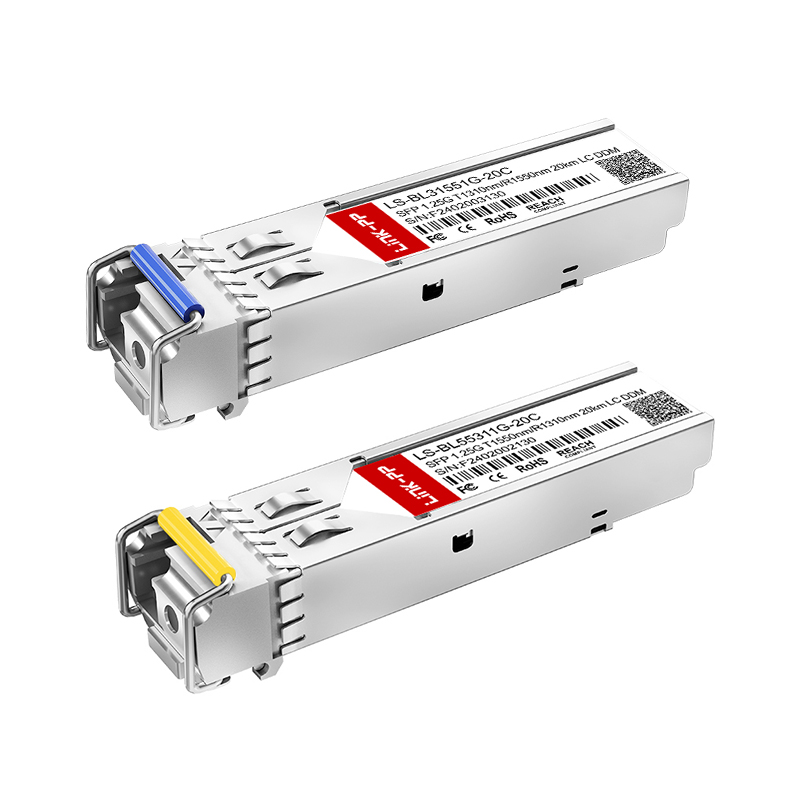

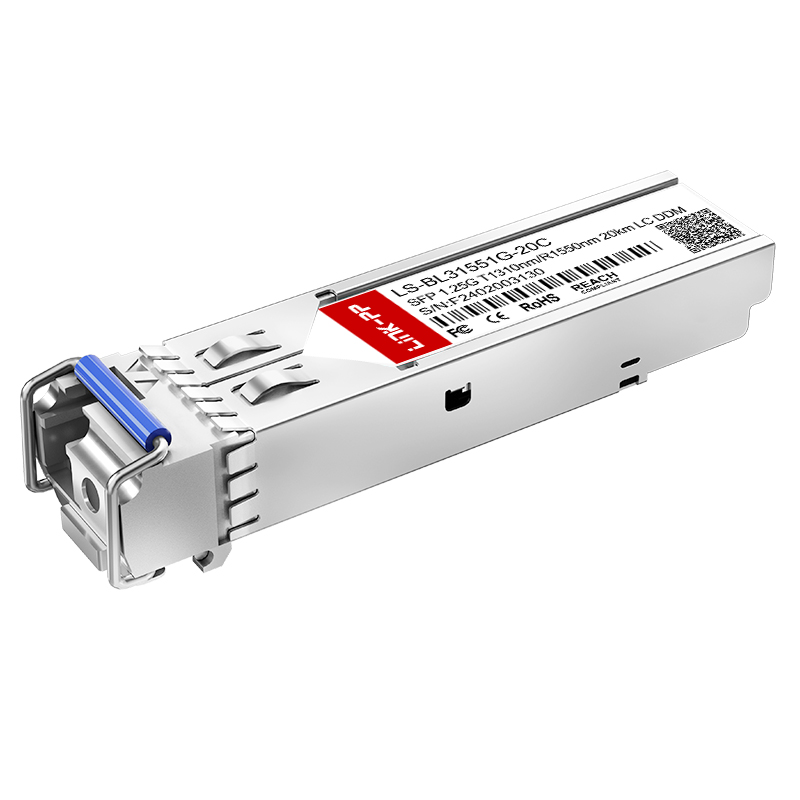

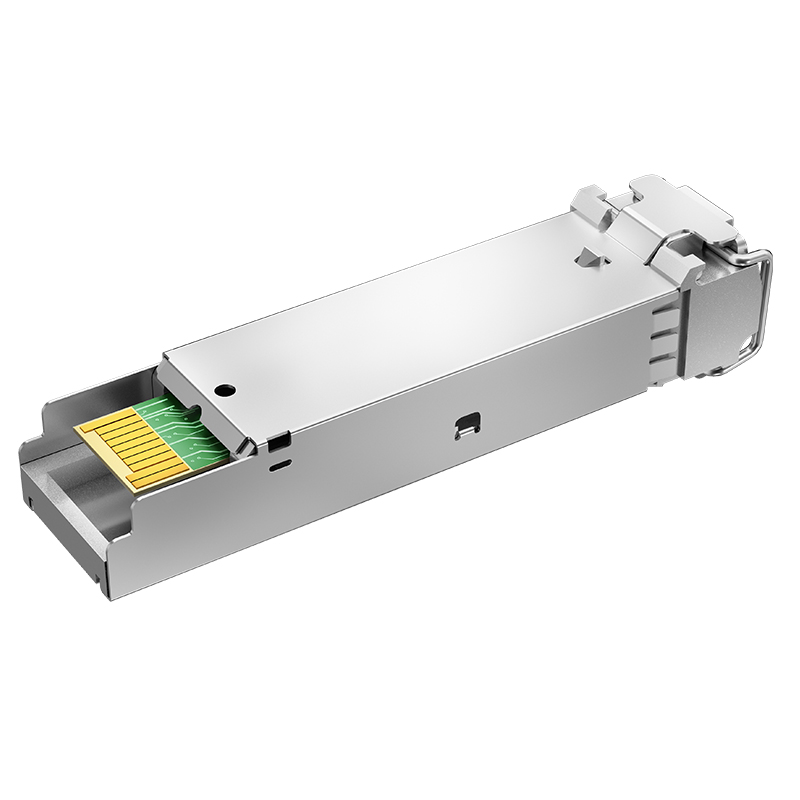

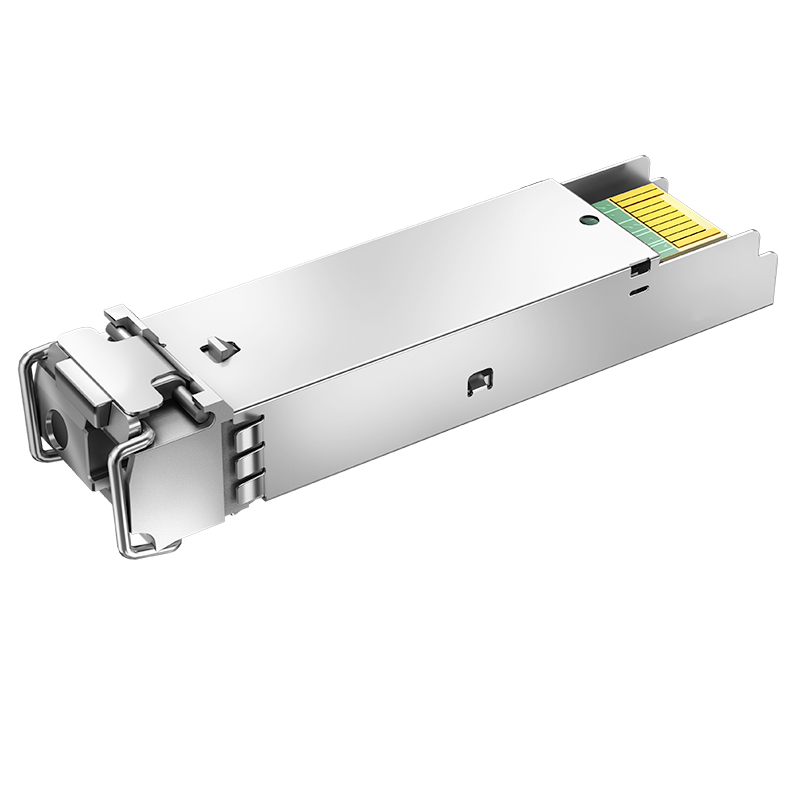

1310nm-TX/1550nm-RX Simplex LC Bidirectional Fiber Optic Transceivers Module Single Mode 1G Bidi SFP 20km

1 / 5

1310nm-TX/1550nm-RX Simplex LC Bidirectional Fiber Optic Transceivers Module Single Mode 1G Bidi SFP 20km

Send Inquiry

Product Description

Products Description

Item	BiDi SFP
Part Status	Active
Form Factor	SFP
Max Data Rate	1000Mbps
Max Cable Distance	20KM
Wavelength	1310nm/1550nm
Connector	Simplex LC
Media	SMF
TX Power	-9~-3dBm
Receiver Sensitivity	<-20dBm
DDM/DOM	DDM Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Frequently Asked Questions

Q Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors and SFP modules, etc.

Q Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the shipping fee should be paid by the customer.

Q What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production orders.

Q What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Q Can you accept OEM/ODM orders?

Yes, we accept both OEM and ODM orders. Please send your requirements to us so we can have a detailed discussion.

Q What is your advantage?

We have over 19 years of manufacturing experience and have partnered with global leading enterprises for many years, ensuring top-tier quality control and stable supply.
