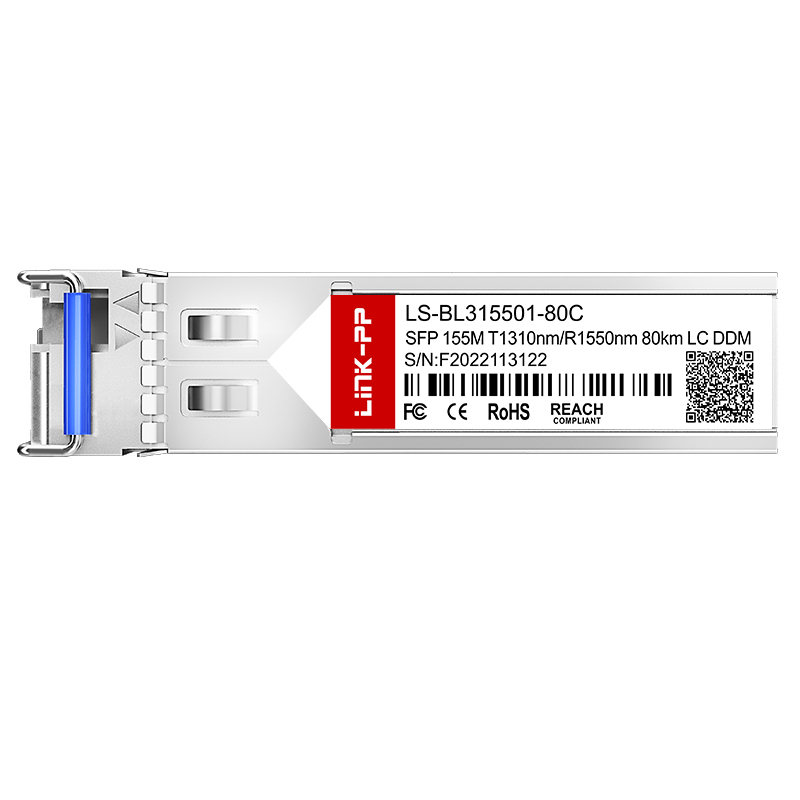

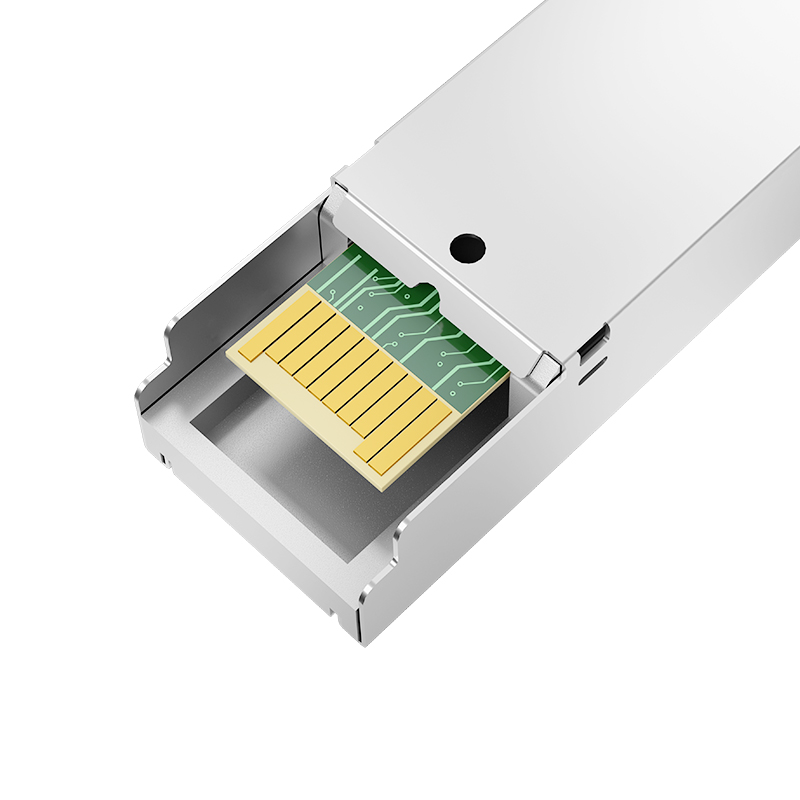

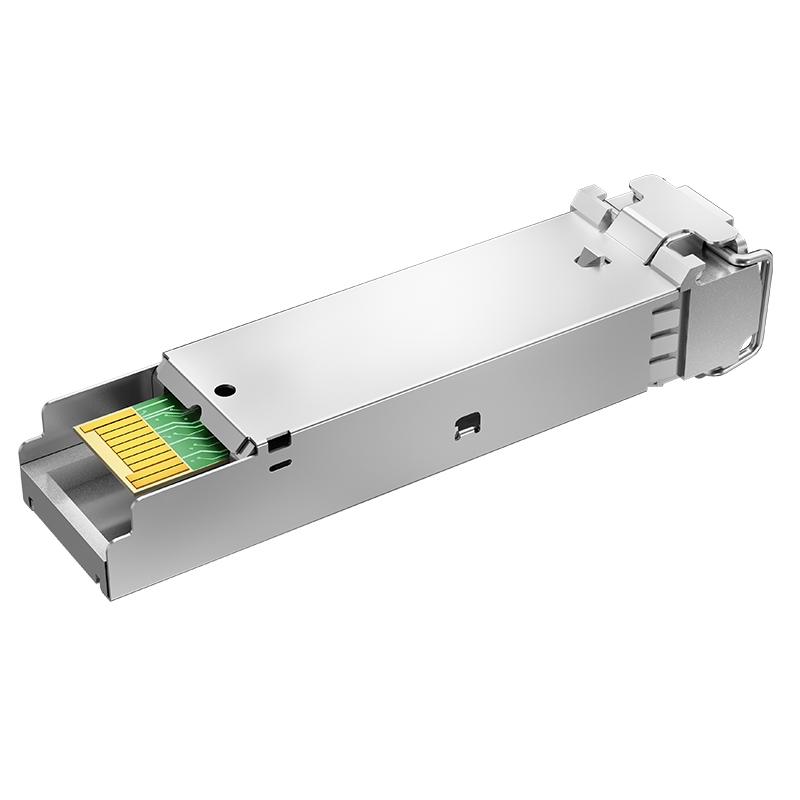

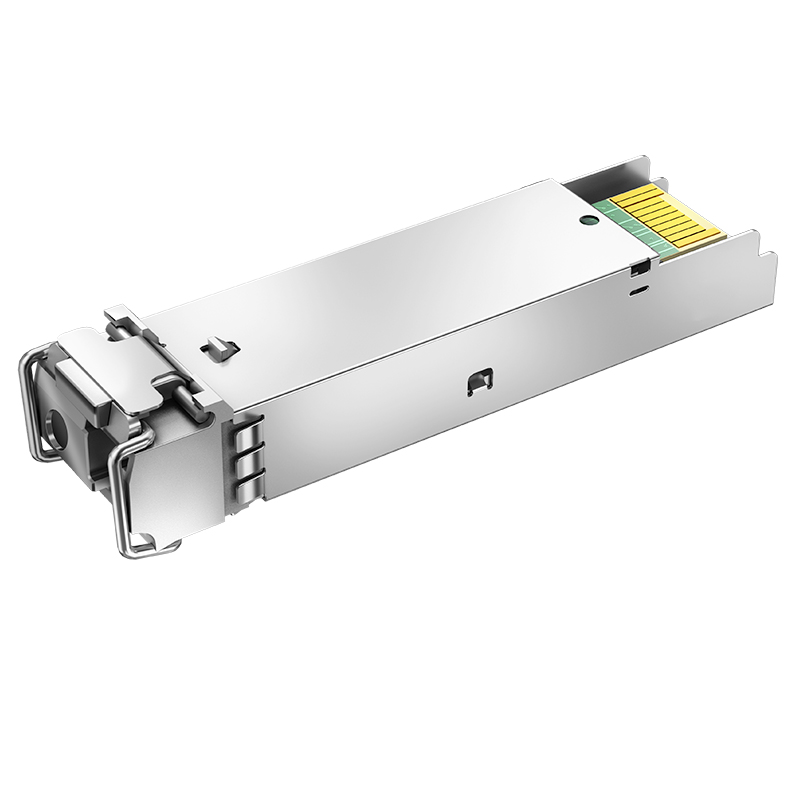

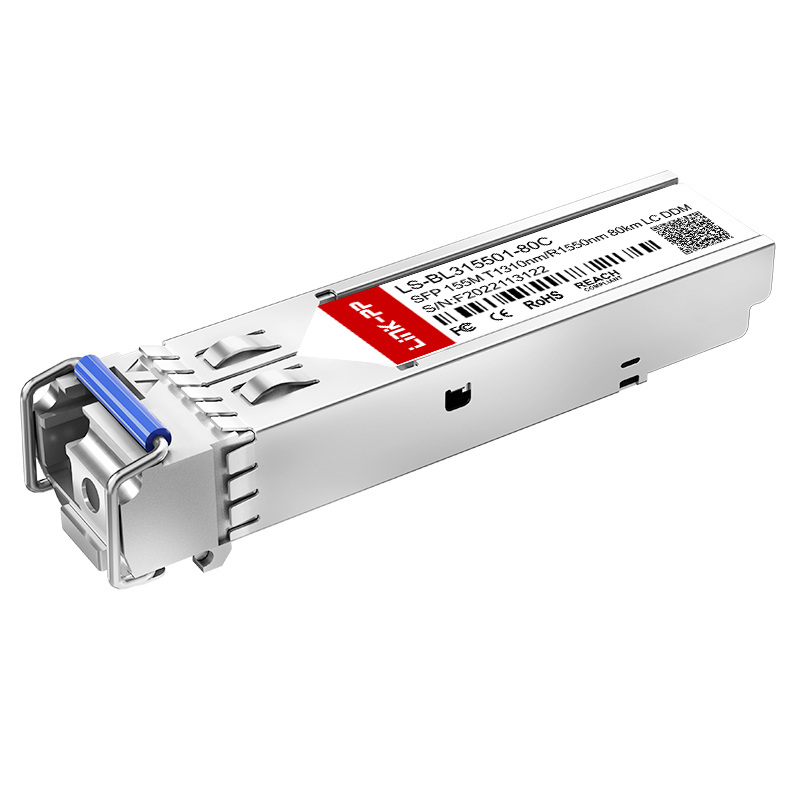

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module

Product Description

1310nm-TX/1550nm-RX Single Mode SFP 155M Bidi 80km LC Optical Transceiver Module
Product Specifications
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1310nm-TX/1550nm-RX
Max Cable Distance 80km
Connector Simplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -5 ~ 2dBm
Receiver Sensitivity < -32dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols SFP MSA and SFF-8472
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Solutions
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C 155Mbps 1310nm-TX/1550nm-RX 10km FP/PIN Yes
LS-BL553101-10C 1550nm-TX/1310nm-RX
LS-BL315501-15C 155Mbps 1310nm-TX/1550nm-RX 15km FP/PIN Yes
LS-BL553101-15C 1550nm-TX/1310nm-RX
LS-BL315501-20C 155Mbps 1310nm-TX/1550nm-RX 20km FP/PIN Yes
LS-BL553101-20C 1550nm-TX/1310nm-RX
LS-BL315501-40C 155Mbps 1310nm-TX/1550nm-RX 40km FP/PIN Yes
LS-BL553101-40C 1550nm-TX/1310nm-RX
LS-BL315501-80C 155Mbps 1310nm-TX/1550nm-RX 80km FP/PIN Yes
LS-BL553101-80C 1550nm-TX/1310nm-RX
LS-BL495501-80C 155Mbps 1490nm-TX/1550nm-RX 80km DFB/PIN Yes
LS-BL554901-80C 1550nm-TX/1490nm-RX
Optics Chart 1
Optics Chart 2
Application Scenarios
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Optical Transport Networks
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all the needs of various scenarios in 4G/5G systems.
Wireless Networks
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
FTTx Applications
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Related Products SFP Cage
Related Products SFP Cage
Why Choose Us
Quality Standard
Testing Procedures
Manufacturing Capabilities
Global Operations
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. We currently have robust production capabilities allowing us to deliver products within a short time. In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
Factory Overview
Production Line
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are to be covered by the client.
What is your delivery time?
Items that are in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
What after-sales service do you offer?
We provide a one-year guarantee period along with online technical support available 24 hours.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM orders. Please contact us with your specifications for further discussion.
What is your main production advantage?
With extensive production experience and partnerships with major global industry leaders, we offer highly stable quality control and scalable supply capacity.
