Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack

Product Description

Product Categories Overview
Tab Up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

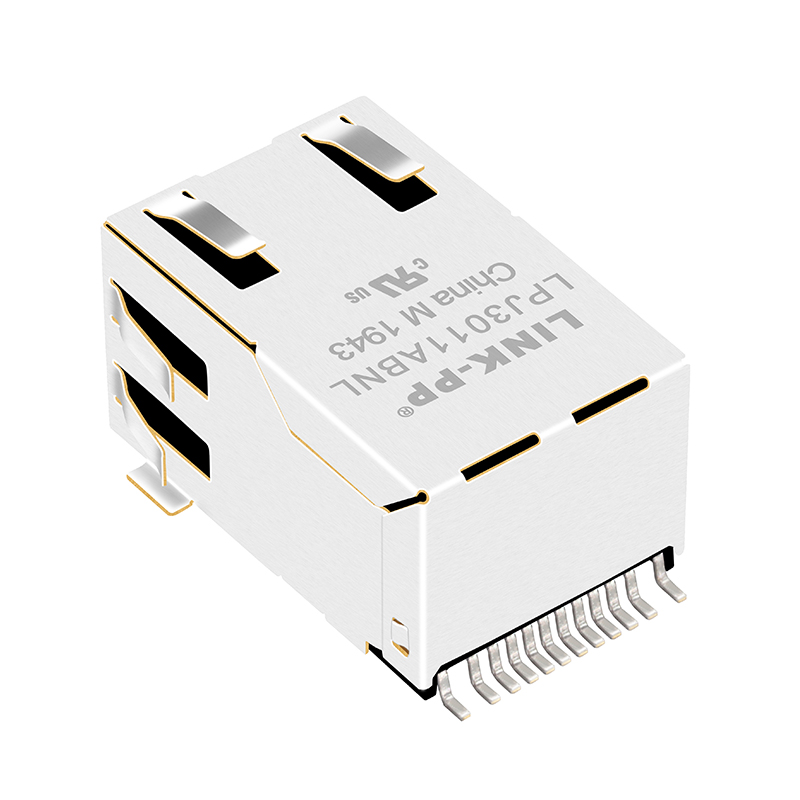

RJ45 SMT Design view 1

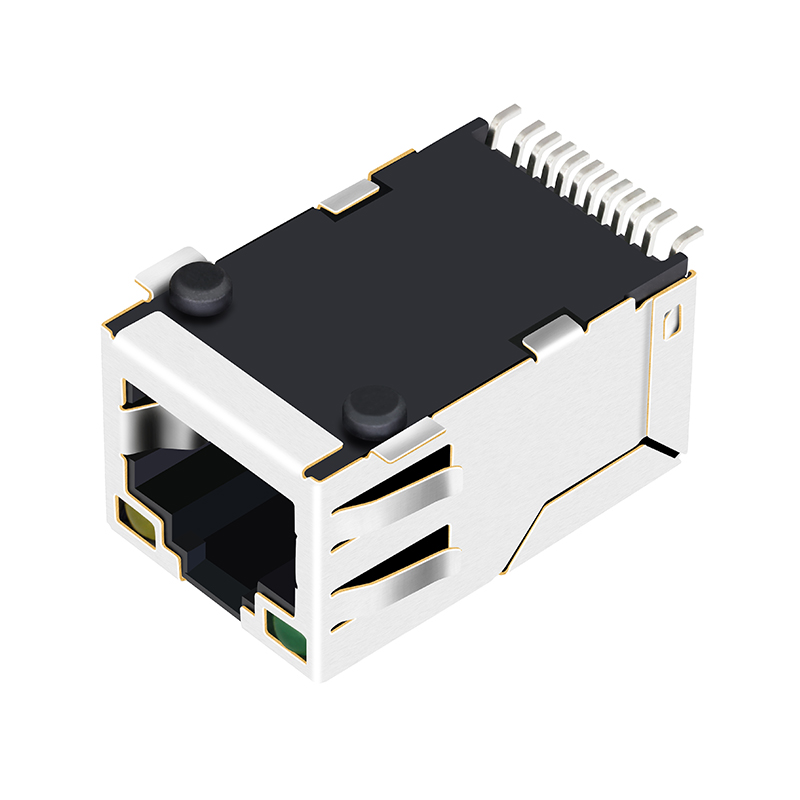

RJ45 SMT Design view 2

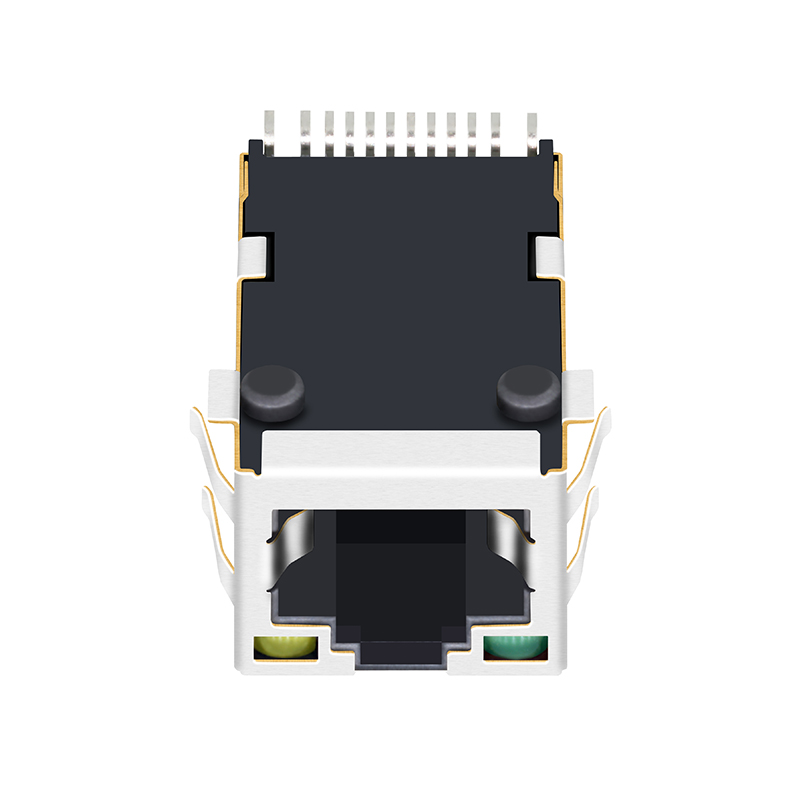

RJ45 SMT Design view 3

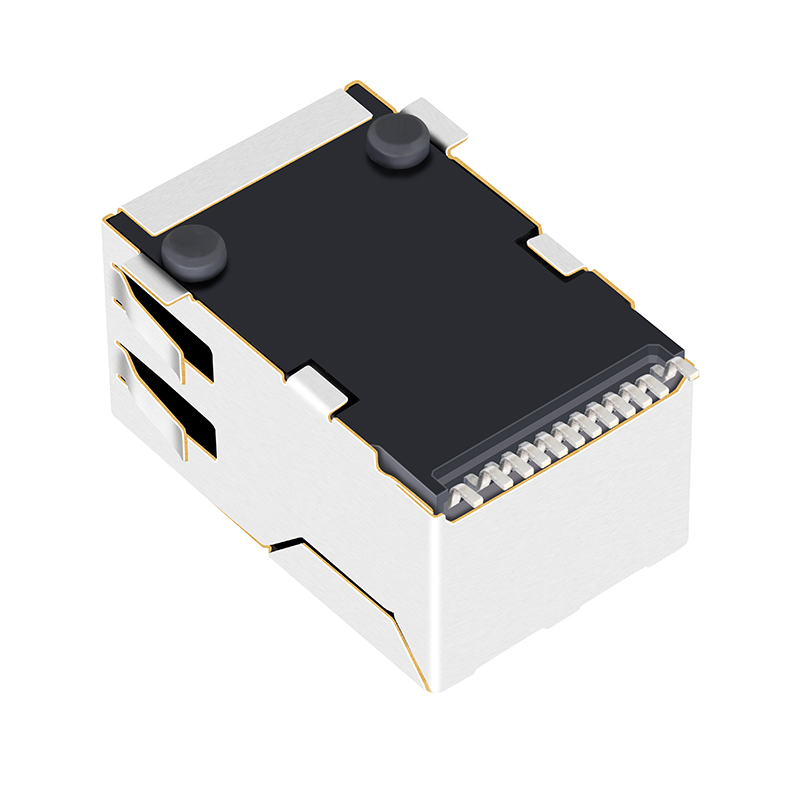

RJ45 SMT Design view 4
