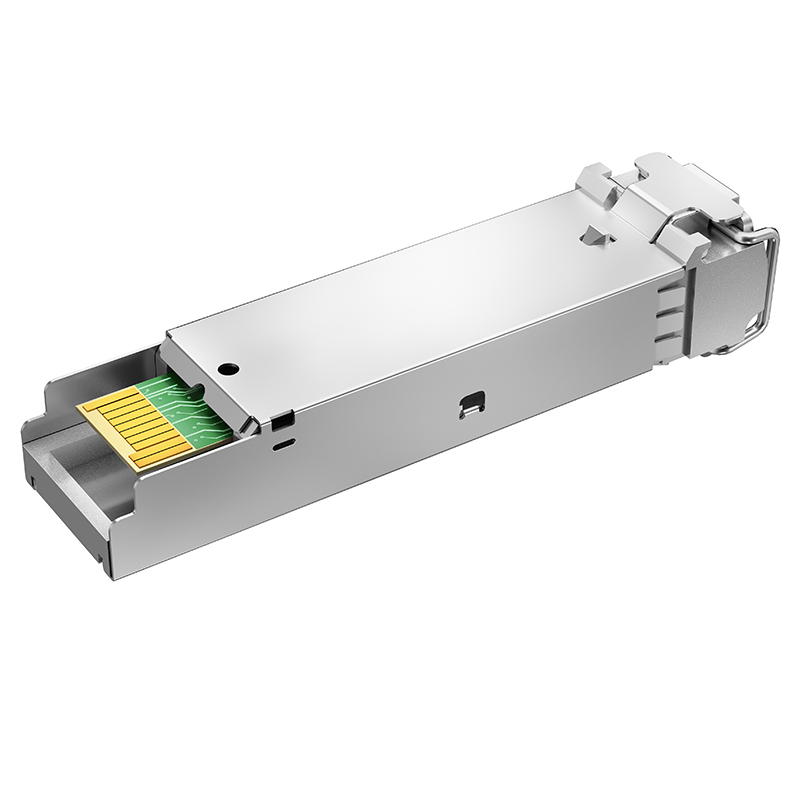

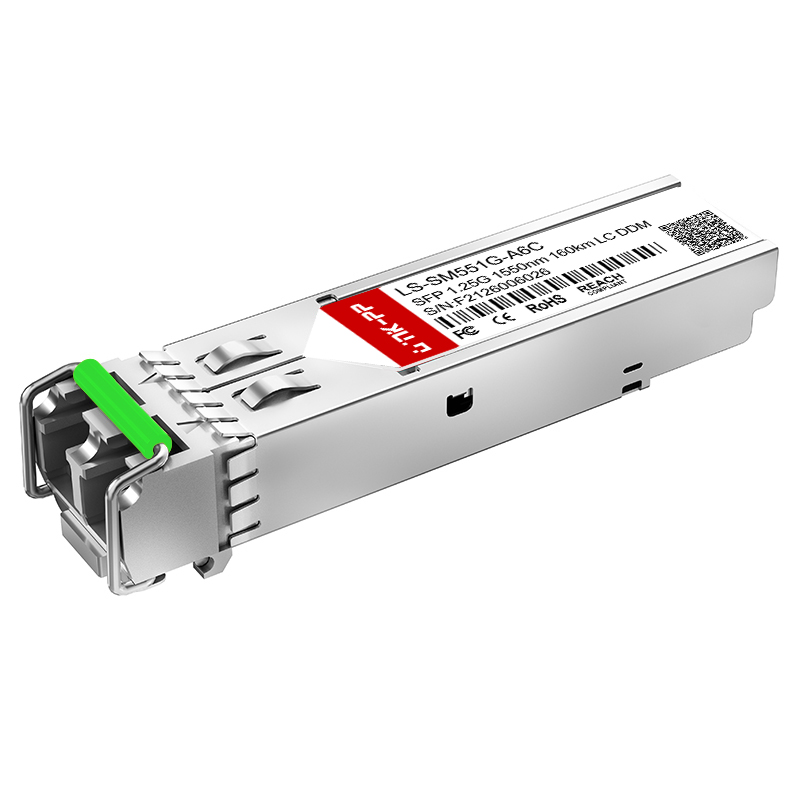

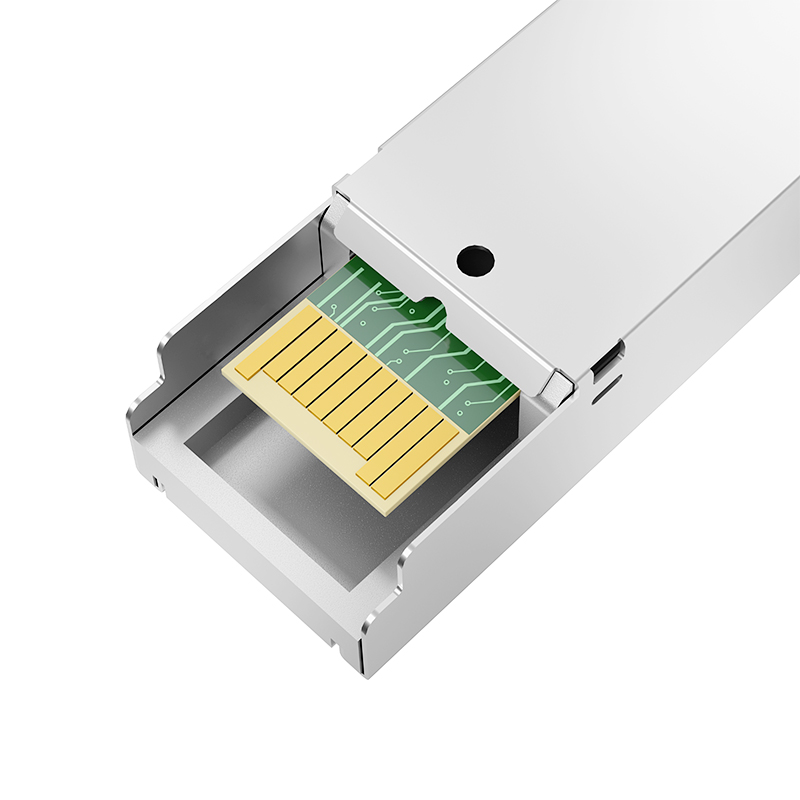

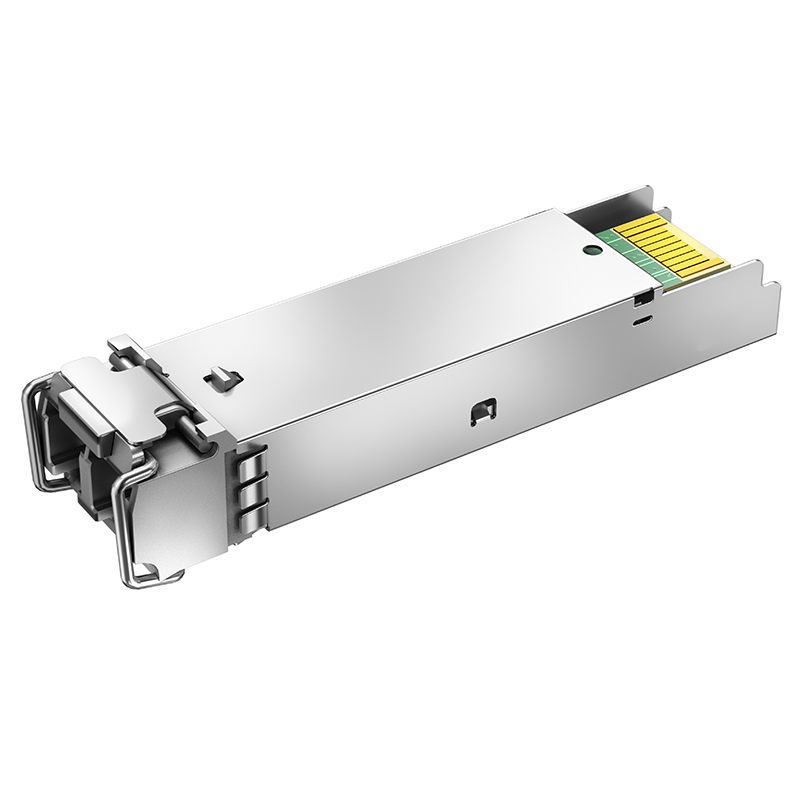

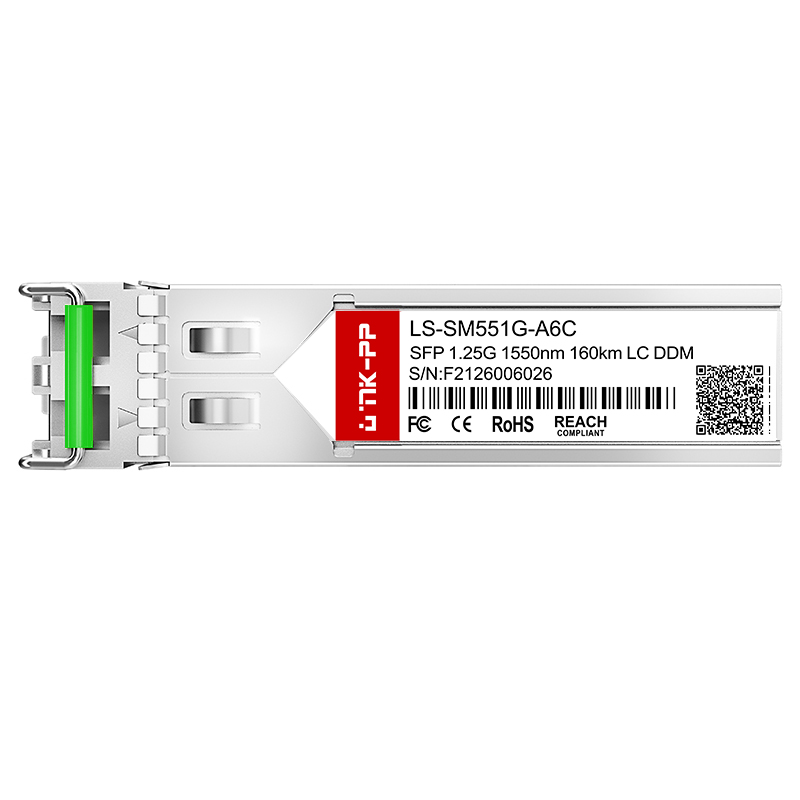

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1000Mbps |
| Wavelength | 1550nm |
| Max Cable Distance | 160km |
| Fiber Type | SMF |
| Media | 1x1 Port |
| Connector | LC |
| Power Consumption | <1W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
We provide high reliability and performance products with mature, efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access solutions and products.
To ensure the normal operation of communication lines, we provide optical cable O&M solutions that integrate an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but shipping fees are responsibility of the customer.
Ready to ship for stock items and 15-30 days for mass production orders.
We provide a one-year warranty period and comprehensive technical support online 24 hours.
Yes, please send your requirements to us so we can discuss the custom options in detail.
With over 19 years of manufacturing experience, we have established long-term partnerships with leading global enterprises.
