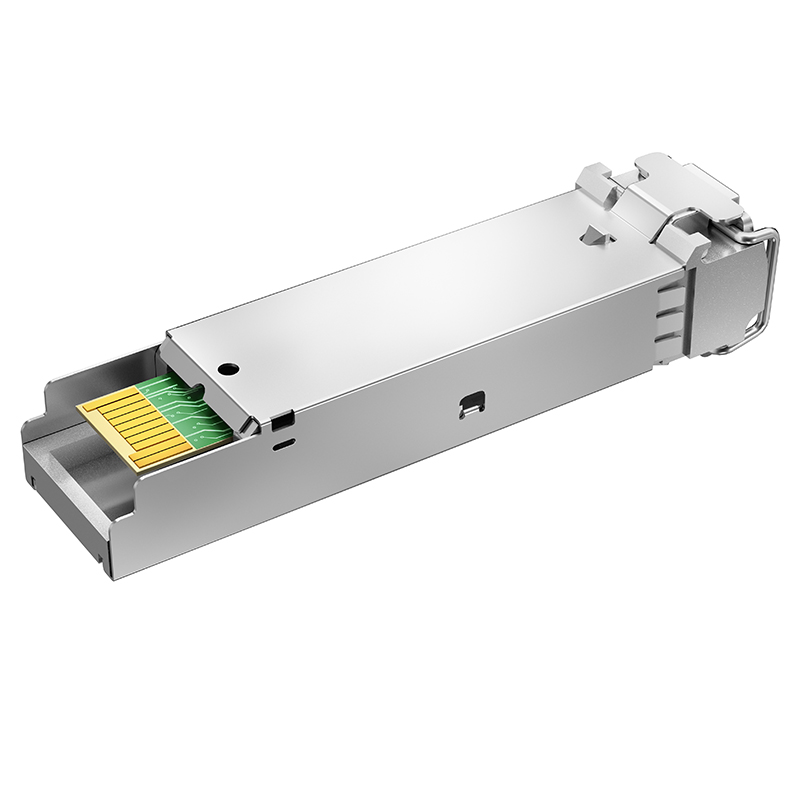

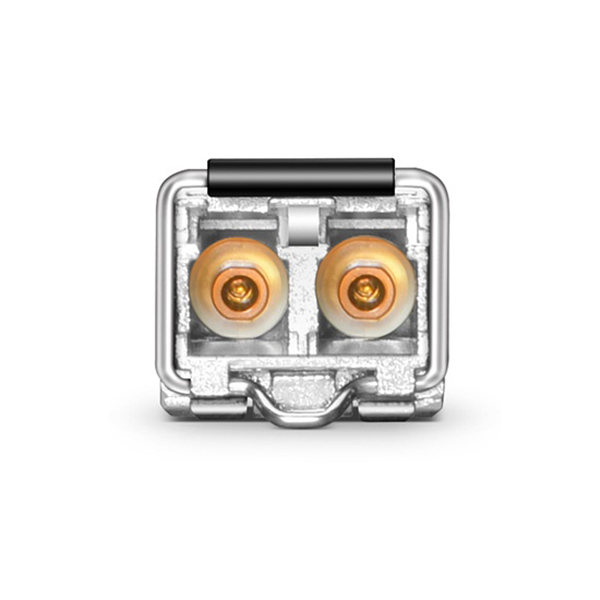

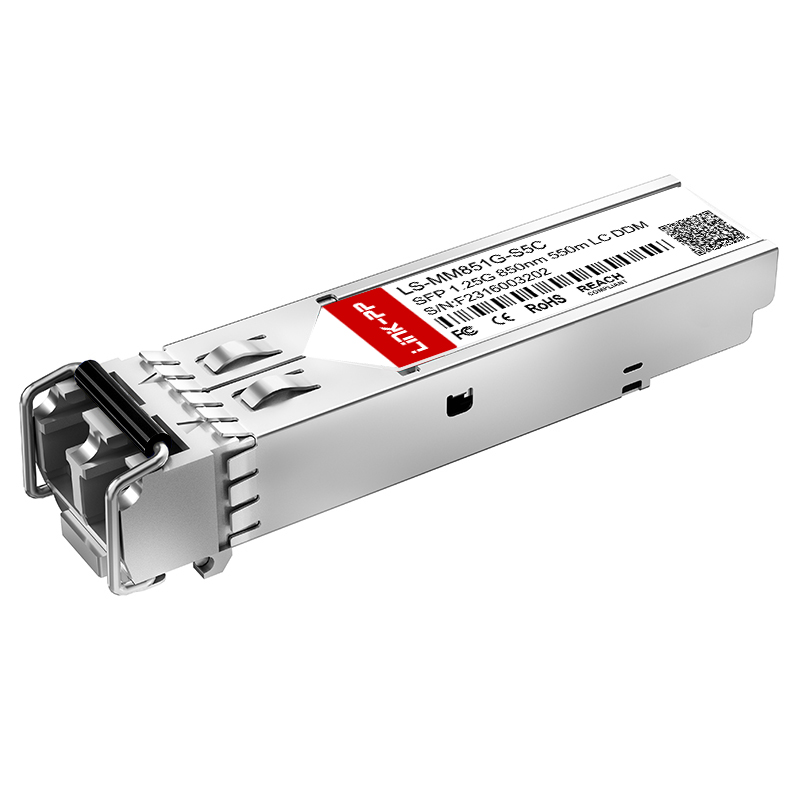

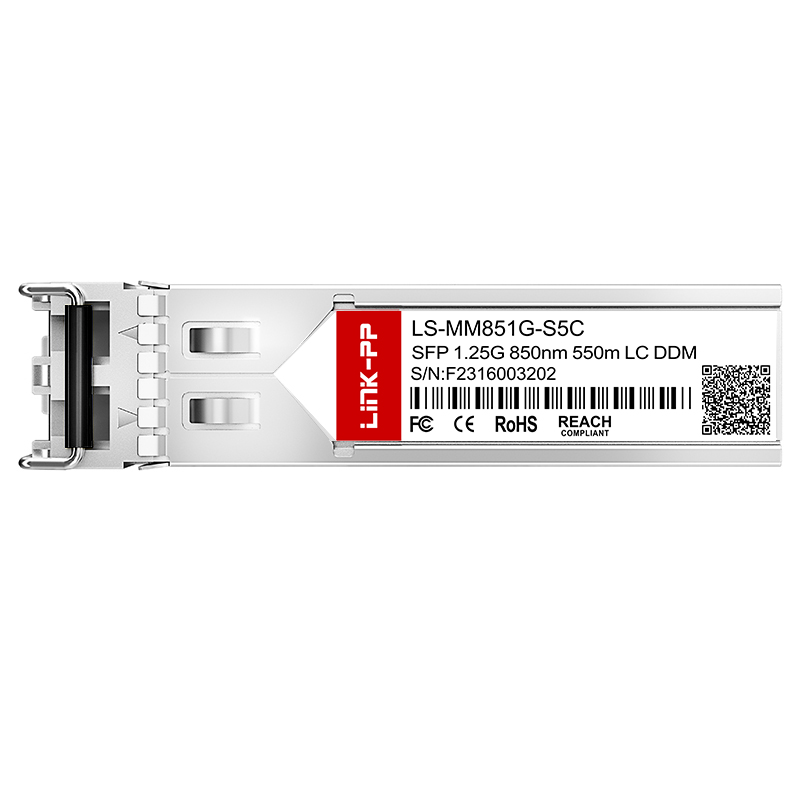

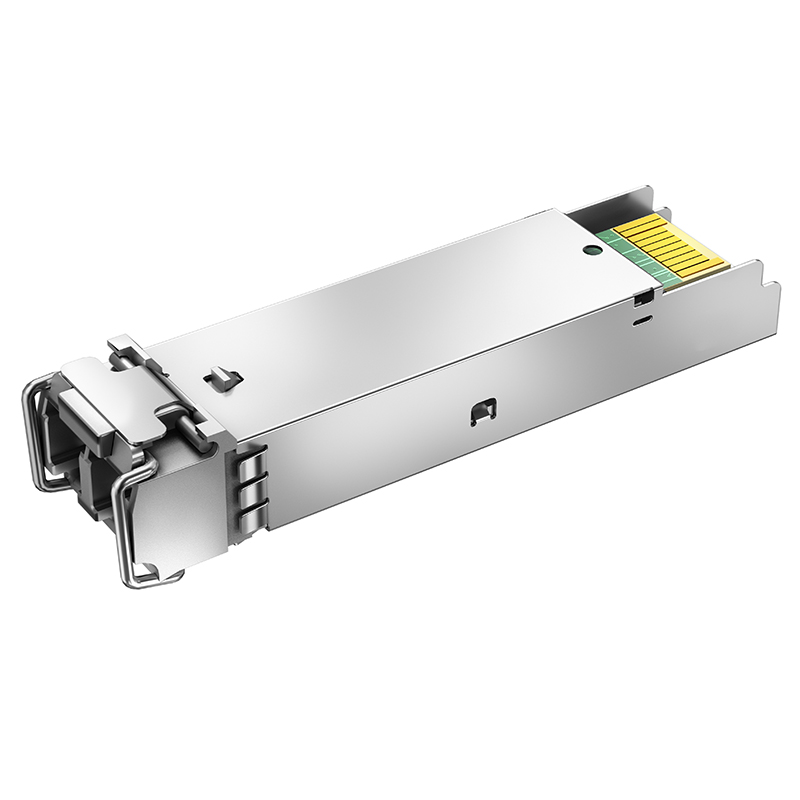

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1 / 5
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module

Send Inquiry

Product Description

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
Products Description
Item SFP Module
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 850nm
Max Cable Distance 550m
Connector Duplex LC
Media Multimode (MMF)
Optical Component VCSEL/PIN
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -9.5 ~ - 3dBm
Receiver Sensitivity < -17dBm
Typical Power Consumption ≤0.8w
Receiver Overload -3dBm
Bit Error Ratio (BER) 1E-12
Extinction Ratio >9dB
EMC (Electro Magnetic Compatibility) Supported
MTBF (SX) 2,457,002 Hours
Protocols IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
Product Map Overview
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Overview Diagram
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device solutions can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, optical cable O&M solutions are provided, which integrate an optical line protection system (OLP) and an optical line monitoring system (OLM).
Hardware Overview
Detailed Equipment Left Detailed Equipment Right
✦ Related Products SFP Cage ✦
SFP Cage Item 1 SFP Cage Item 2
Why Choose Us
Why Choose Us Point 1 Why Choose Us Point 2 Why Choose Us Point 3 Why Choose Us Point 4
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and partnership with industry leaders for many years.
