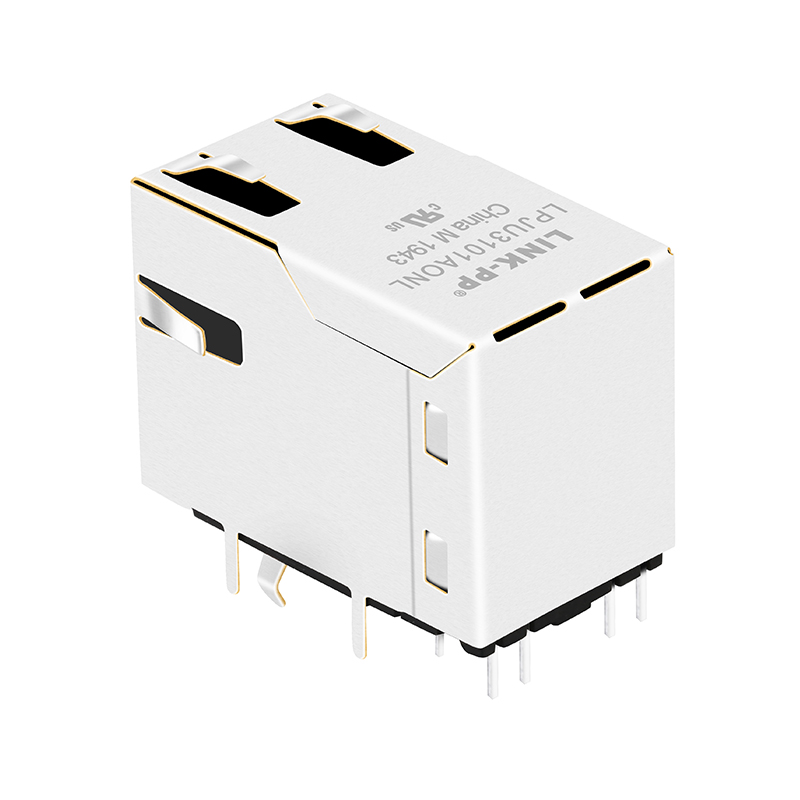

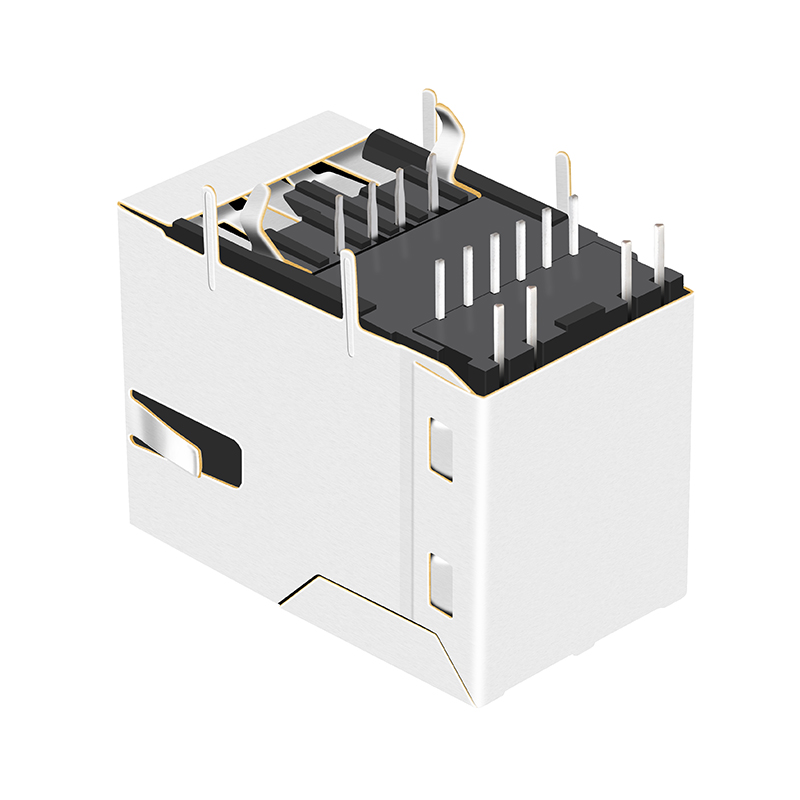

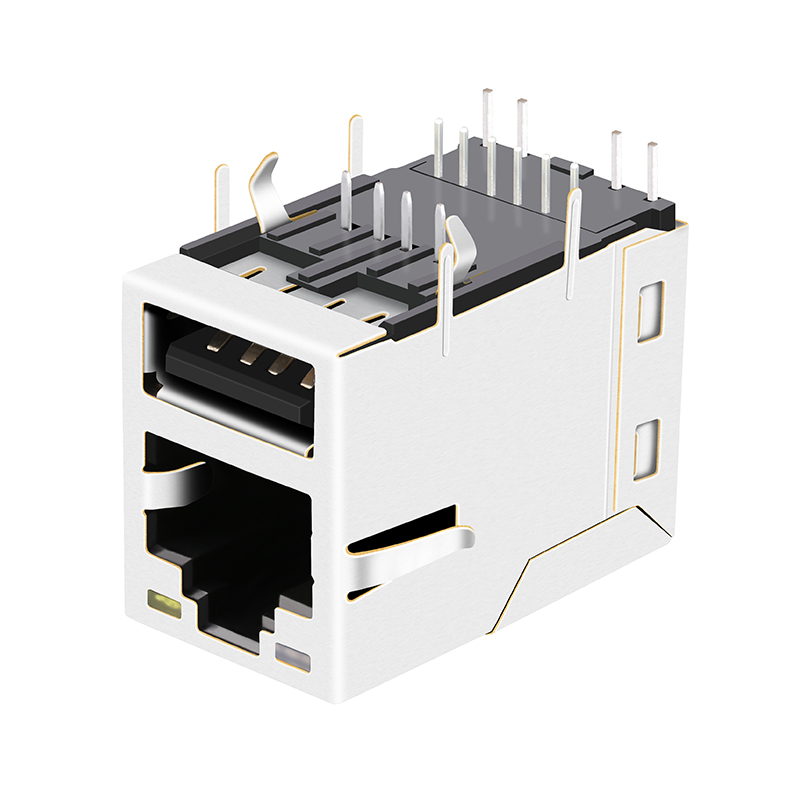

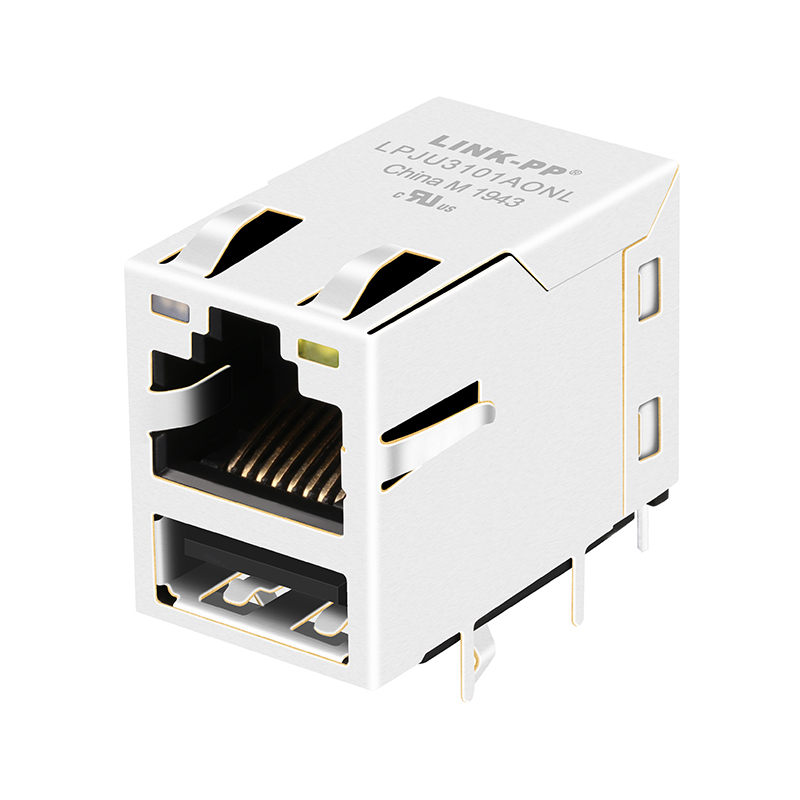

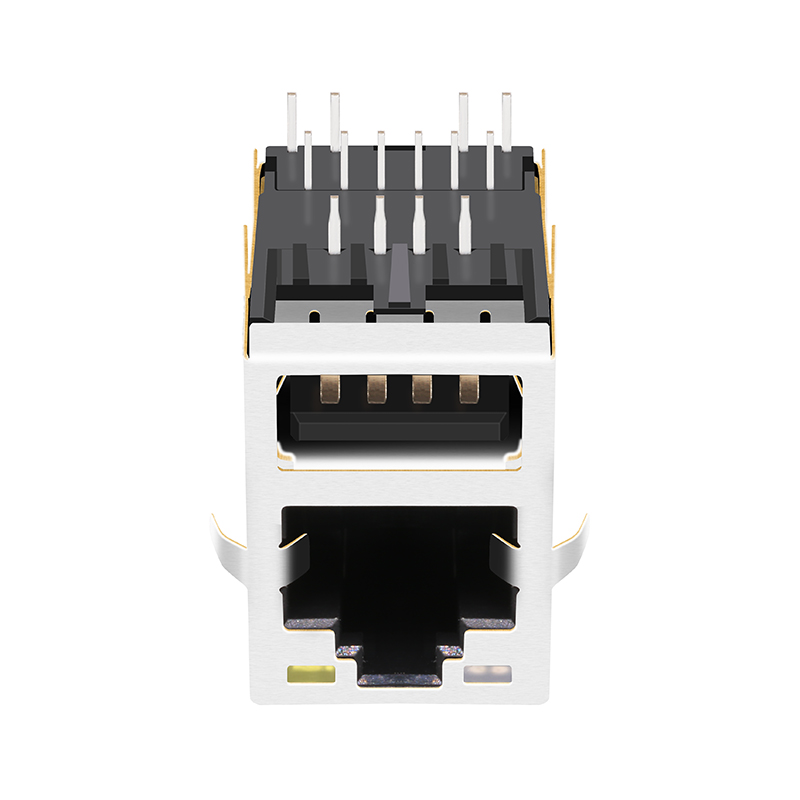

| Item | RJ45 Female Connector |
| Manufacturer Part Number | LPJU3101AONL |
| Compatible Part Number | 43F-1201DYD2NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port With 1 USB |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Orange & Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, RJ11 connectors and SFP modules, etc.
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
Ready to ship for items in stock, and 15-30 days for mass production orders.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiry to us so we can proceed with a detailed discussion.
We possess 19 years of professional production experience and have served as a reliable industry partner for many years.
