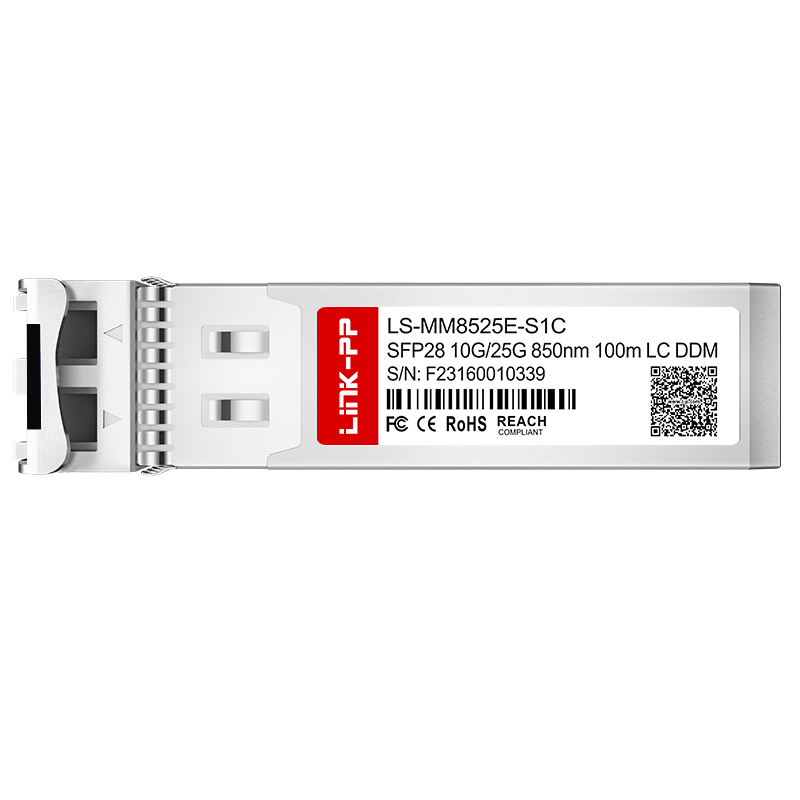

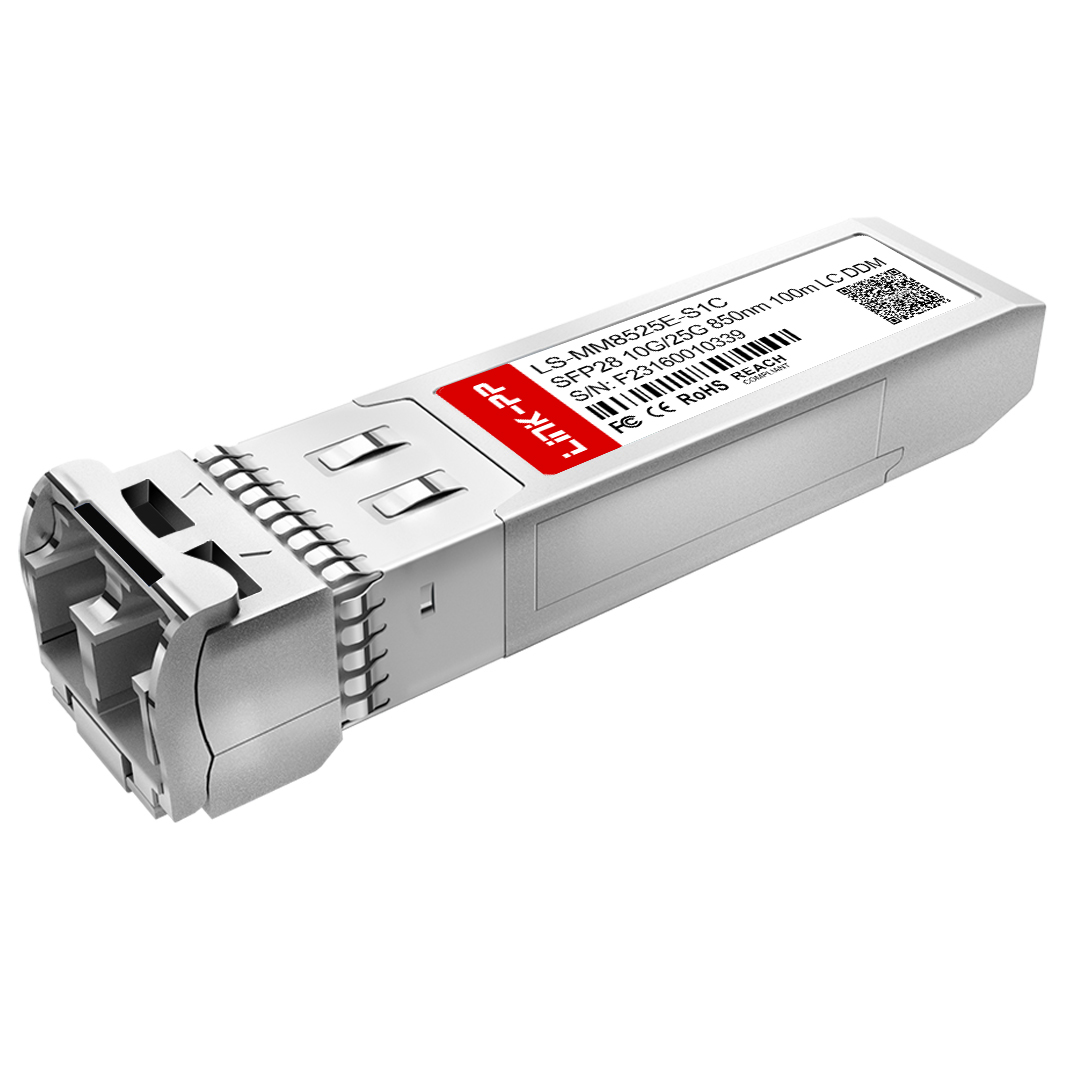

Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
1 / 5
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver

Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver

Send Inquiry

Product Description

Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Products Description
Item 25G SFP28 Transceiver
Part No. LS-MM8525E-S1C
Part Status Active
Form Factor SFP28
Max Data Rate 10G/25Gbps
Wavelength 850nm
Max Cable Distance 100m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-6dBm
Receiver Overload 2.4dBm
Power Consumption ≤1.2W
Extinction Ratio 2dB
DDM/DOM Supported
Commercial Temperature Range 0℃ to 70°C / -40℃ to 85℃
Protocols IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Module Architecture
Product Categories Overview
Quality Assured Production
Rigorous Quality Controls
Applications & Infrastructure
Optical Transport Networks
Active & Passive Solutions
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
10G to 800G Range
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
4G / 5G Systems ready
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Solutions
All-Optical Combined Access
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems Integration
OLP & OLM Systems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
SFP Cage Interface
SFP Cage Hardware
Why Choose Us
Design and Technology Advantage
Strict Inspection Standards
Highly Reliable Testing Environment
Professional Certification
Production Facility
Manufacturing Area
Precision Assembly Line
Frequently Asked Questions
1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2 Can I get a sample before mass production?
Yes, we can offer free samples for quality evaluation, though shipping costs are to be covered by the recipient.
3 What is your estimated delivery time?
For standard in-stock products, items are ready to ship. For custom mass production orders, the delivery timeframe typically spans 15-30 days.
4 What after-sales service and technical support do you offer?
We provide a comprehensive 1-year product warranty alongside 24/7 technical support online to resolve integration or operational concerns.
5 Do you accept OEM / ODM orders?
Yes, we accept bespoke OEM and ODM orders. Send us your parameters and specification requirements for a detailed evaluation.
6 What is your main production advantage?
With over 19 years of manufacturing experience, we operate advanced, certified production lines and have established reliable partnerships with leading global enterprises.
