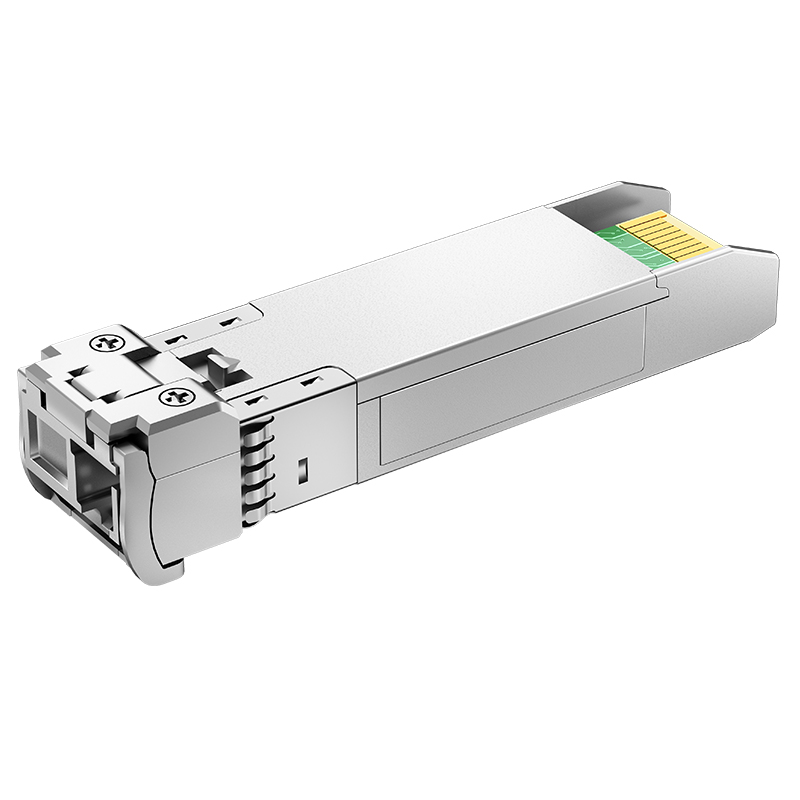

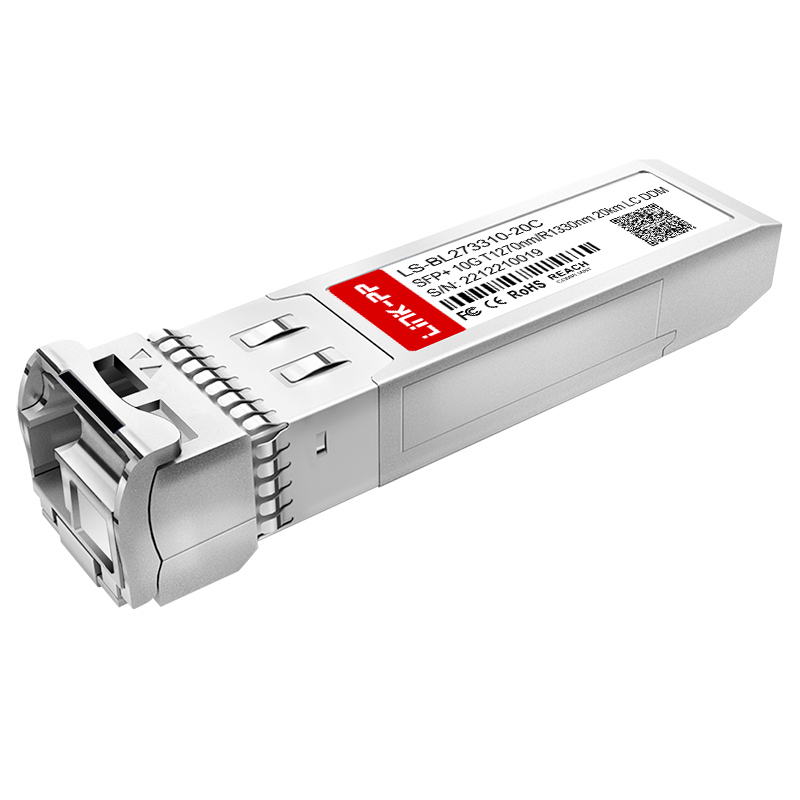

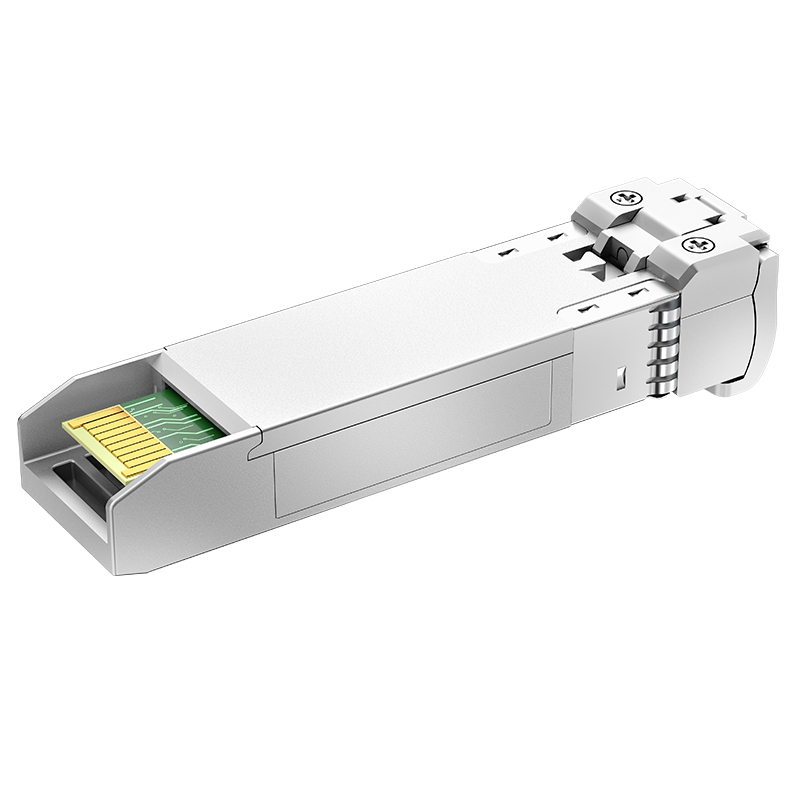

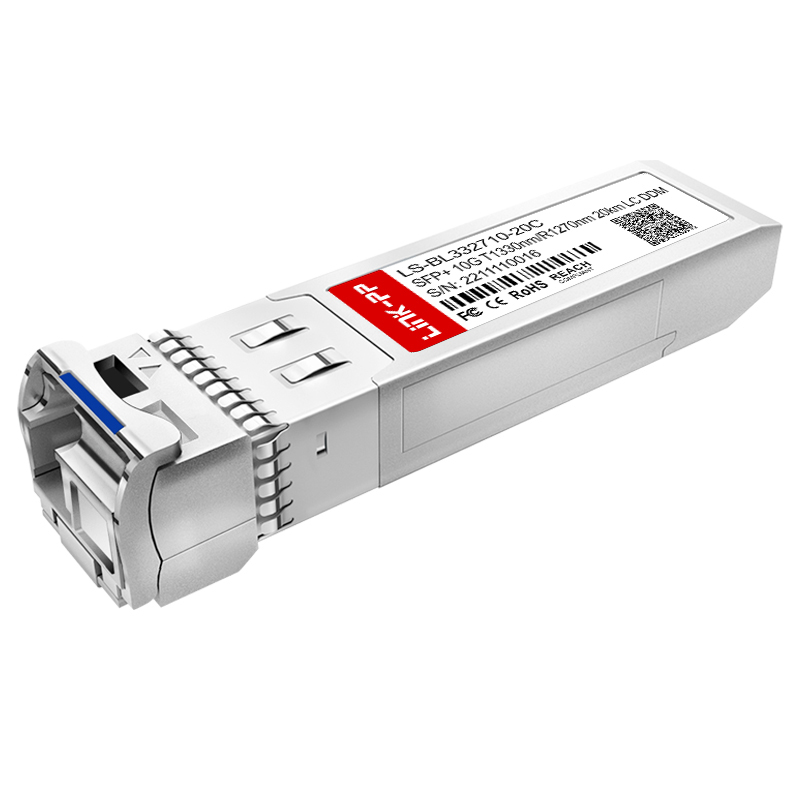

Bidirectional 1270nm/1330nm 10G BiDi SFP+ 20km Simplex LC SMF Optical Transceiver Module

Products Description

Item	10G BiDi SFP+
Part Status	Active
Form Factor	SFP+
Max Data Rate	10G
Max Cable Distance	20km
Wavelength	1270nm/1330nm
Connector	Simplex LC
Optical Components	DFB/PIN
Media	SMF
TX Power	-6~3dBm
Receiver Sensitivity	<-14.4dBm
Powerbudget	8.4dB
Receiver Overload	0.5dBm
Power Consumption	≤1W
DDM/DOM	DDM Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	SFP+ MSA Compliant, CPRI, eCPRI
Warranty	5 Years
Sample	Available

View Our Solution

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

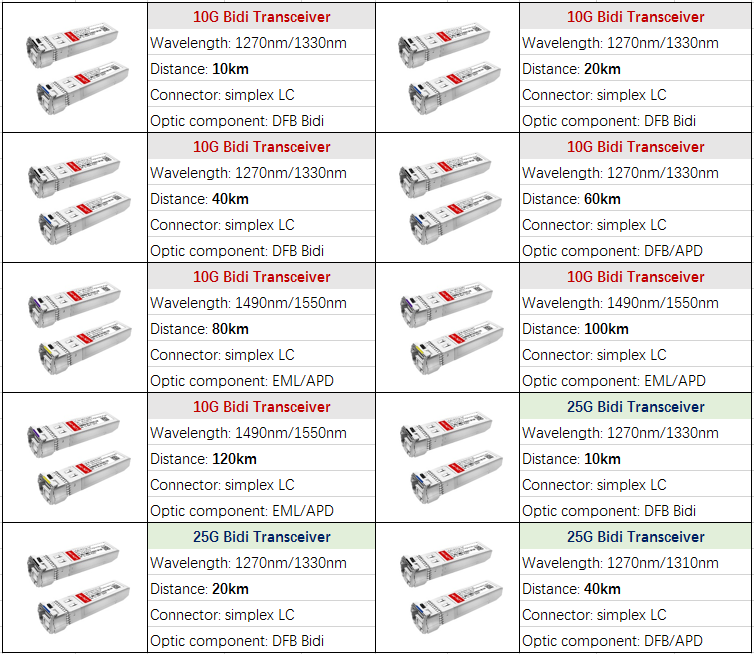

Provide 10-25G BiDi Transceiver

Applications & Capabilities

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Our products offer high reliability and performance with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K per month, we can deliver products within a short timeframe.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.

FAQ

1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but you will need to cover the shipping fees.

3. What is your delivery time?

Items in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.

4. What post-sales service do you provide?

We offer a one-year warranty period along with 24-hour online technical support.

5. Do you accept OEM/ODM orders?

Yes, please contact us with your specifications so we can discuss the details of your project.

6. What are your main advantages?

We possess 19 years of dedicated production experience and have been a trusted manufacturing partner for industry-leading global brands for many years.

Product Detail

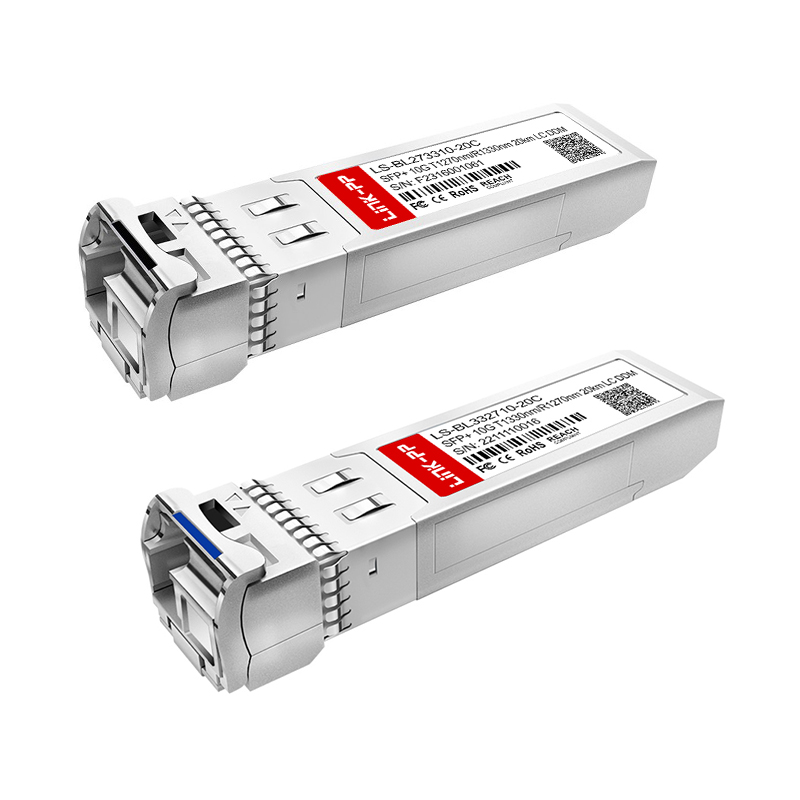

Bidirectional 1270nm/1330nm 10G BiDi SFP+ 20km Simplex LC SMF Optical Transceiver Module
