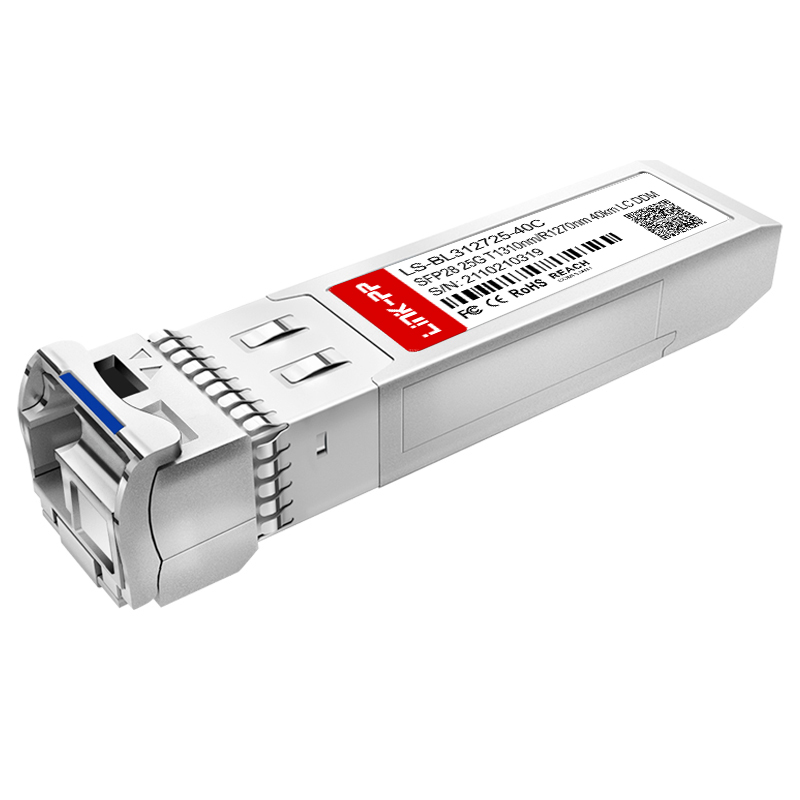

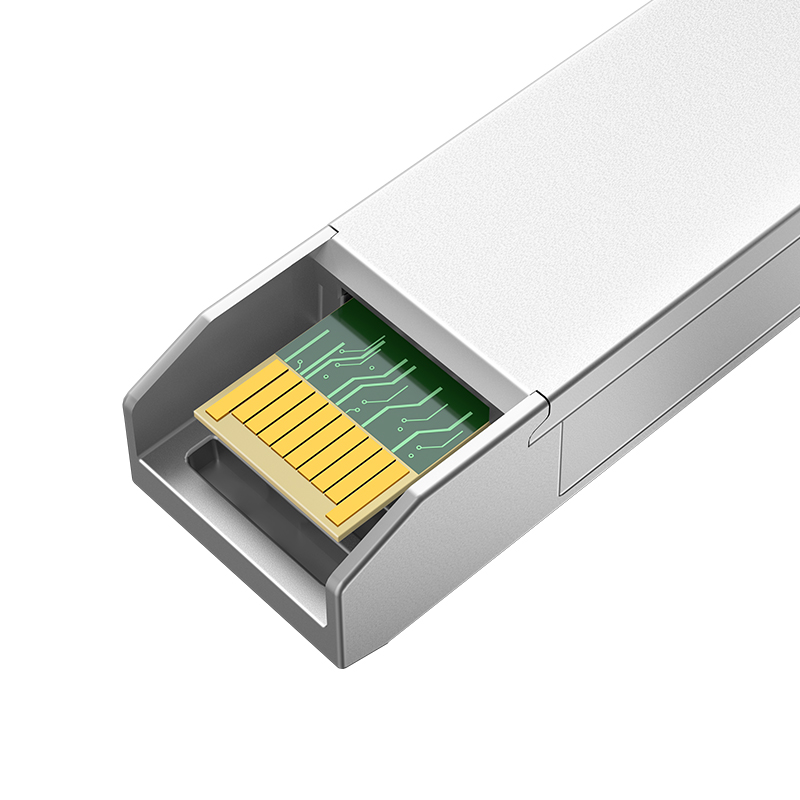

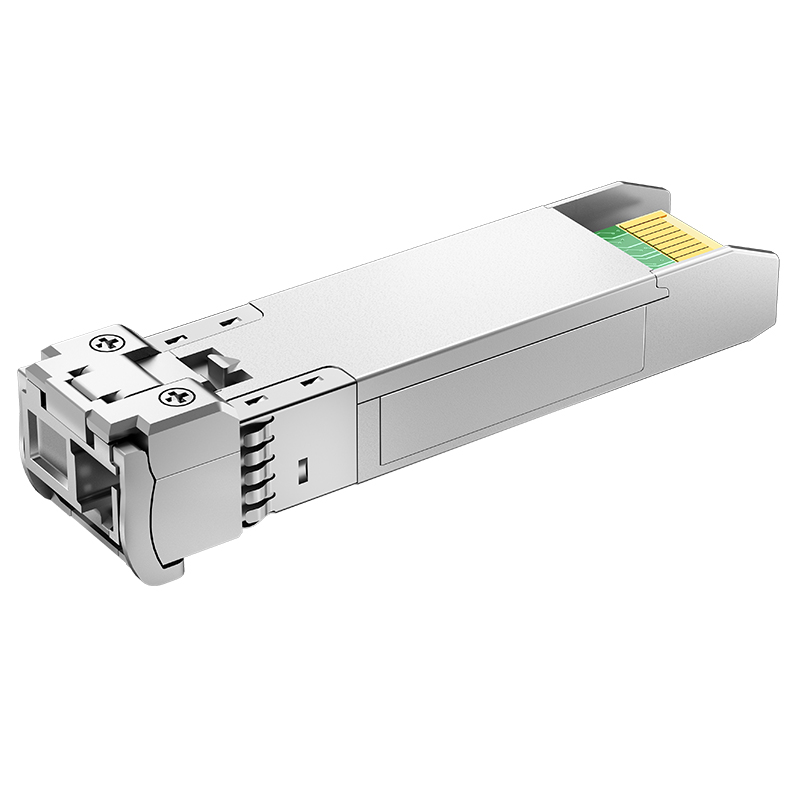

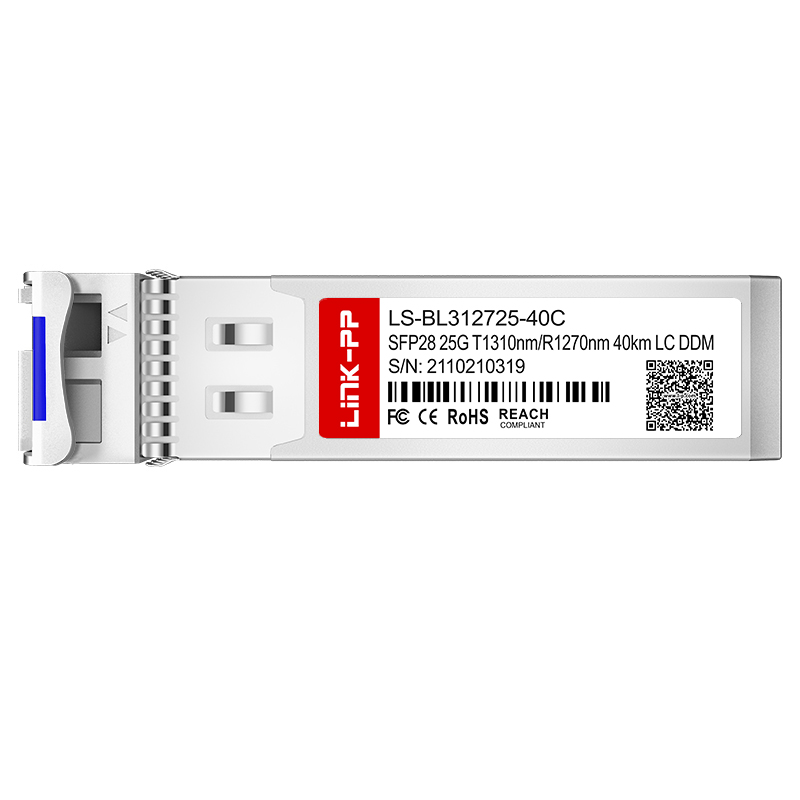

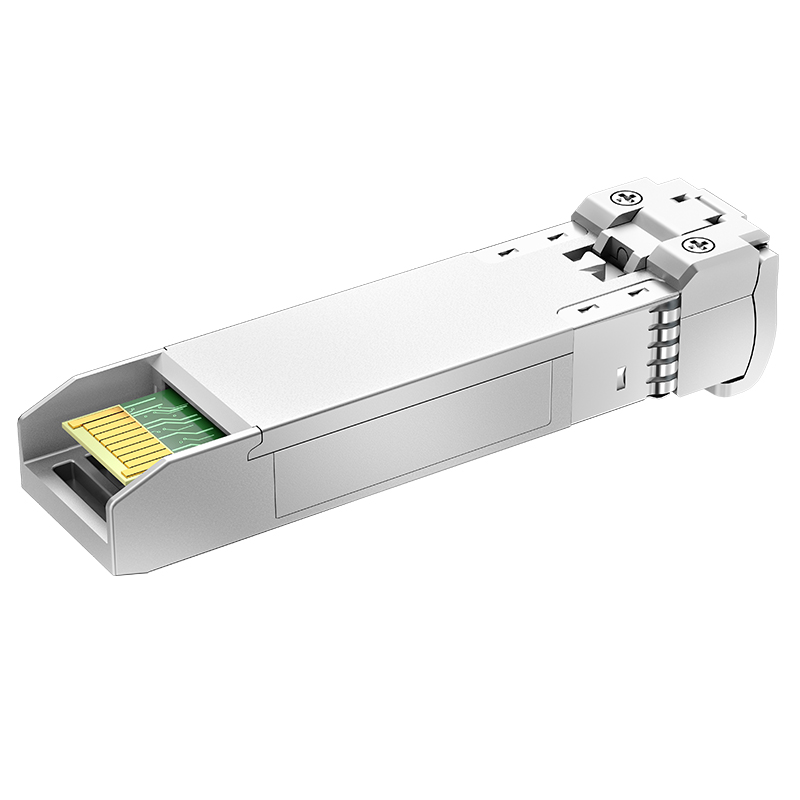

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1 / 5
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

Send Inquiry

Product Description

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL312725-40C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm-TX/1270nm-RX
Max Cable Distance 40km
Media SMF
Connector Simplex LC
Optical Component DFB/APD
TX Power 0~6dBm
Receiver Sensitivity <-18dBm
Receiver Overload 2dBm
Power Consumption 1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
